CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive

1.narrow gauge battery locomotive
2.explosion-proof
3.one year warranty

4.overseas after sale services are available


Features of CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive

a. CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive includes chopped wave intelligent speed regulation and resistance speed regulation based on speed regulation mode.Includes safety and special explosion-proof version based on their applicable site.
b. Small size,short wheelbase,flexible,smooth and reliable mechanical braking.
Simple structure and easy maintenance.
c. Used for roadway,small-scale mine transportation and medium-size mine vehicle.


Parameter of CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive

Model

CTY2.5/6,7,9G

Adhesive Weight

2.5 tons

Track Gauge

600, 762 or 900mm

Traction

2.55kN

Speed

4.54km/h

Max. Traction

6.13kN

Power Supply Device

Voltage

48V

Capacity

308 or 330Ah

Power

3.5kw*1

Size

Length

2330mm

Width

914,1076 or 1212mm

Height

1550mm

Traction Height

320 mm

Wheelbase

650mm

Wheel Diameter

Φ460mm

Min. Turning Radius

5m

Controller

Resistance or Pulsing speed regulation

Brake Mode

Mechanical

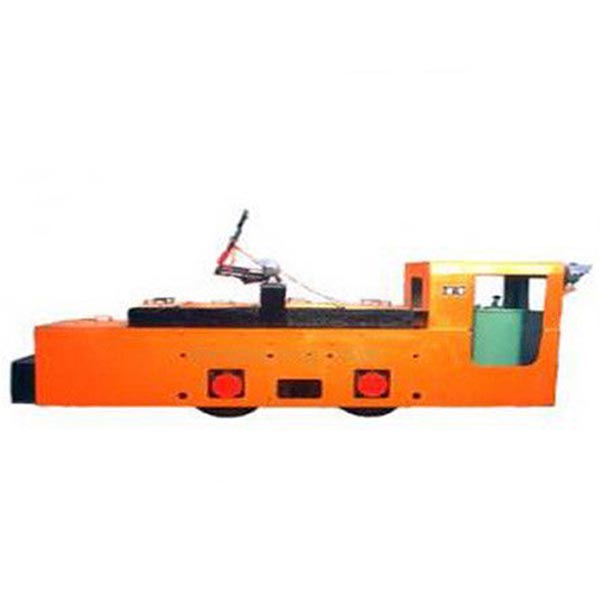

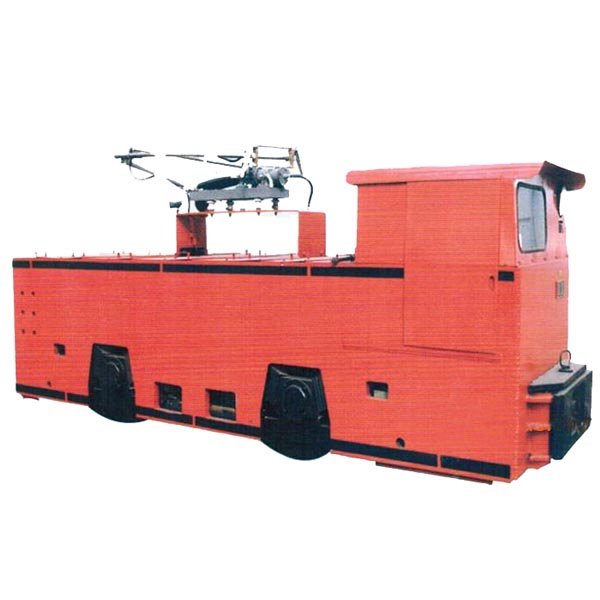

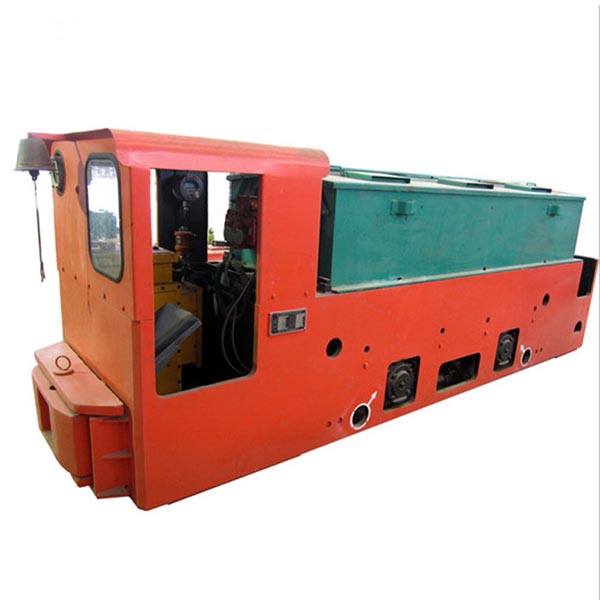

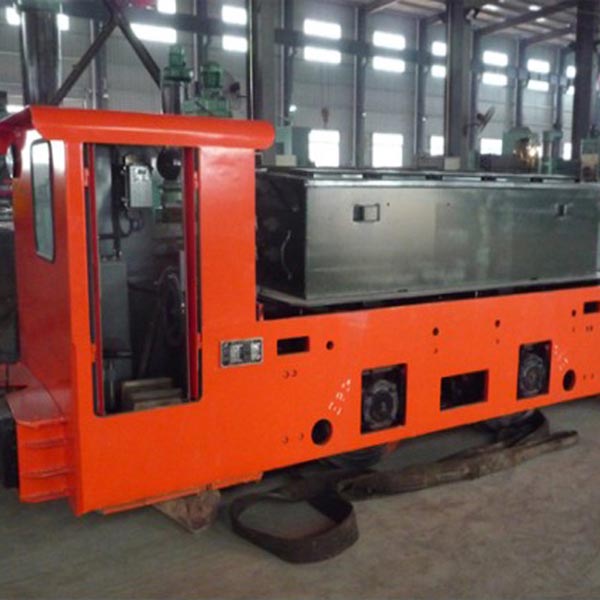

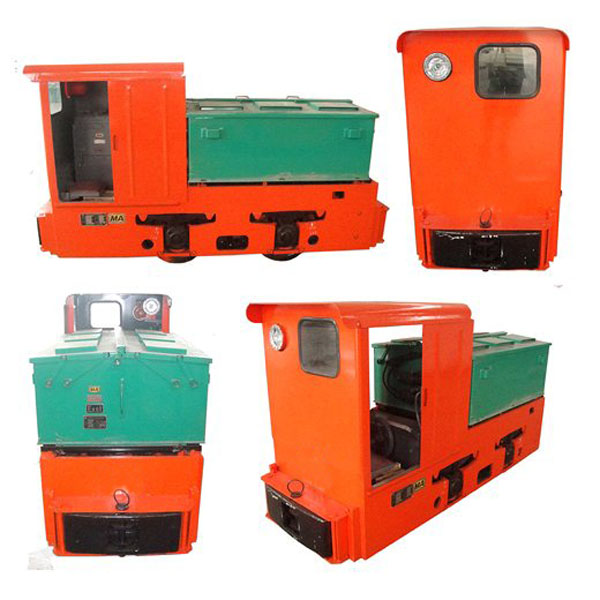

Photos of CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive
