CAY55/9GP 55T Explosion-proof Underground Mine Battery Locomotive

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of CAY55/9GP 55T Explosion-proof Underground Mine Battery Locomotive

CAY55/9GP 55T Explosion-proof Underground Mine Battery Locomotive can be mainly used as a tractive device for trans-mission of mineral, equipment, equipment and personnel in opencast. Besides, it can also be used for rail bound transmission on the ground within factories or mines. As the electric locomotive isn't equipped with an explosion-proof device, it can\'t be used in the place where the explosive gases are rather dense.
1.55 Ton battery mine locomotives have battery units with larger capacity and are made of thick steel plate.
2.big traction
3.wide range of speed regulation
4.high reliability

Parameter of CAY55/9GP 55T Explosion-proof Underground Mine Battery Locomotive

Model No.CAY55/9GP/CAY55/1435GP

Specification

CAY55/9GP

CAY55/1435GP

Adhesive/ Total Weight(t)

55

55

Track Gague(mm)

900

1435

Wheelbase(mm)

5900

5900

Wheel Diameter(mm)

840

840

Coupler Height Over Steel Rail(mm)

320/430

320/430

Min Curve Radius(m)

60

60

Battery Volt Rating(V)

540/750(620Ah)

540/750(620Ah)

Braking Method

Mechanical,Electrical,Air

Mechanical,Electrical,Air

Max Tractive Effort(KN)

151

151

Max Speed(km/h)

30

30

Rated Speed per hour(km/h)

8.8

8.8

Power of Traction Motor(KW)

2*150

2*150

Tranmisson

Dual Level Gearing

Dual Level Gearing

Controller

AC Frequency Conversion

AC Frequency Conversion

Over all Dimensions

10000*1600*2500

10000*1600*2800

Service& Application

Mucking in Mining& Tunneling

Mucking in Mining& Tunneling

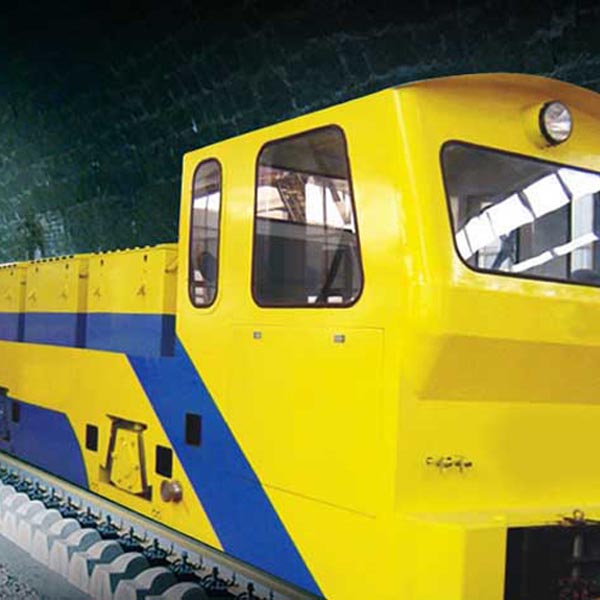

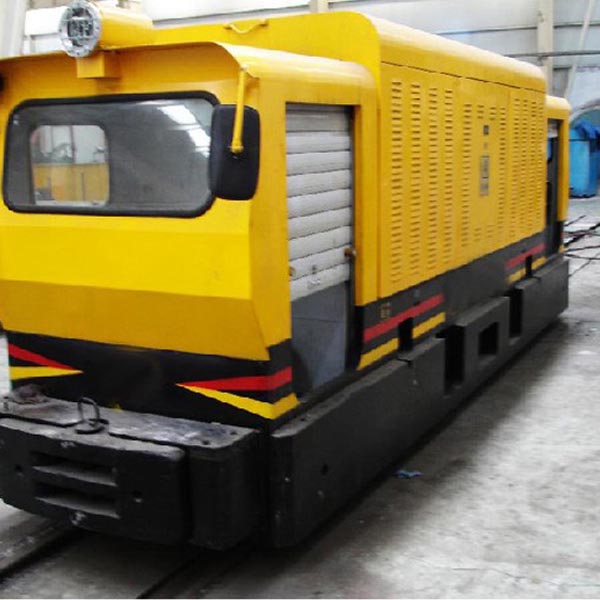

Photos of CAY55/9GP 55T Explosion-proof Underground Mine Battery Locomotive
