8 ton Underground Mine Battery Locomotive for Mine

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of 8 ton Underground Mine Battery Locomotive for Mine

8 ton Underground Mine Battery Locomotive for Mine is powerful with great tractive effort , heavy duty loading capacity and climbing and moving smoothly .
Basing on special advantage in the field of Mining Equipment control system and advanced technology of AC frequency conversion , we have developed wide range of electrical locomotives :battery powered and trolley type from 2.5 tons through to 55 tons suitable for various track gauge including 600mm, 762mm, 900mm and 1435mm. with the unique feature such as the cab available in three designs : one side type , central type and in Tandem Operation type ; Locomotives with Radio Remote Control ; and Explosion proof locomotive. some of Models passed MA certificate , mainly service for tunneling , mining , shield construction and related industrial applications . All locomotives are track tested prior to shipment to ensure reliable operation and safe control.
8 ton Underground Mine Battery Locomotive for Mine is powerful with great tractive effort , heavy duty loading capacity and climbing and moving smoothly .
Braking control system is safe , intelligent , reliable and easy to operate .
Less maintenance requirements.
Energy-saving , up to 25-30% energy saving compared to DC driving type.
Eco-Friendly because its less emission .

Parameter of 8 ton Underground Mine Battery Locomotive for Mine

locomotive

Model No.

specifications

CAY8/6GP

CAY8/7GP

CAY8/9GP

Adhesive / total weight (t)

8

8

8

Track gauge (mm)

600

762

900

Wheelbase (mm)

1100

1100

1100

Wheel diameter over tread

680

680

680

Coupler height over

Steel rail (mm)

320/430

320/430

320/430

Min Curve radius (m)

7

7

7

Battery volt rating (V)

132(440Ah)

140(440Ah)

192(440Ah)

Braking method

Mechanical and electrical

Mechanical and electrical

Mechanical and electrical

Max tractive effort (KN)

22

22

22

Max speed (km/h)

20

20

20

Rated speed

per hour (km/h)

10

10

10

Power of traction Motor (KW)

2*22

2*22

2*22

Transmission

Single level

Spur gearing

Single level

Spur gearing

Single level

Spur gearing

Controller

AC frequency conversion

AC frequency conversion

AC frequency conversion

Over all dimensions (mm)

4460*1060*1590

4400*1340*1590

4460*1340*1590

Service & Application

Mucking in mining & tunneling

Mucking in mining & tunneling

Mucking in mining & tunneling

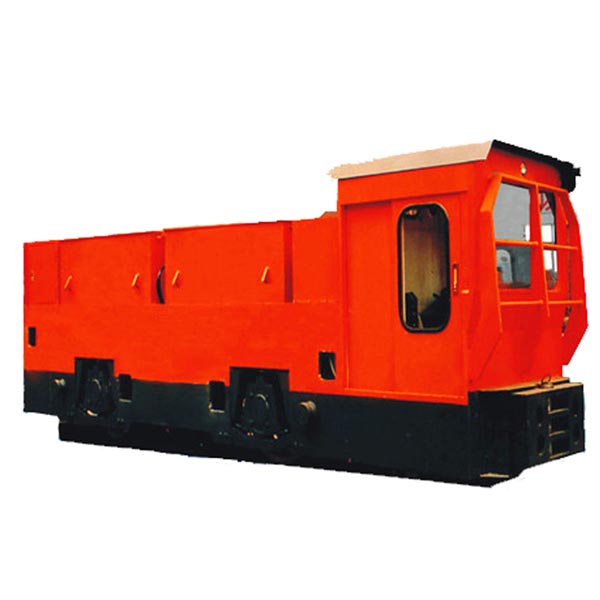

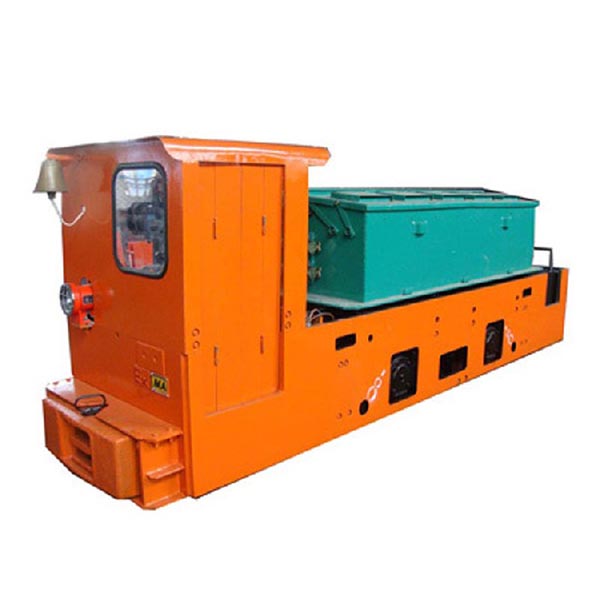

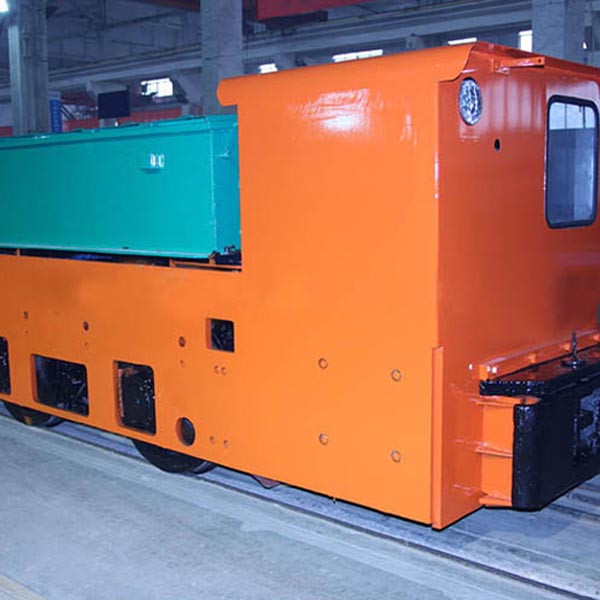

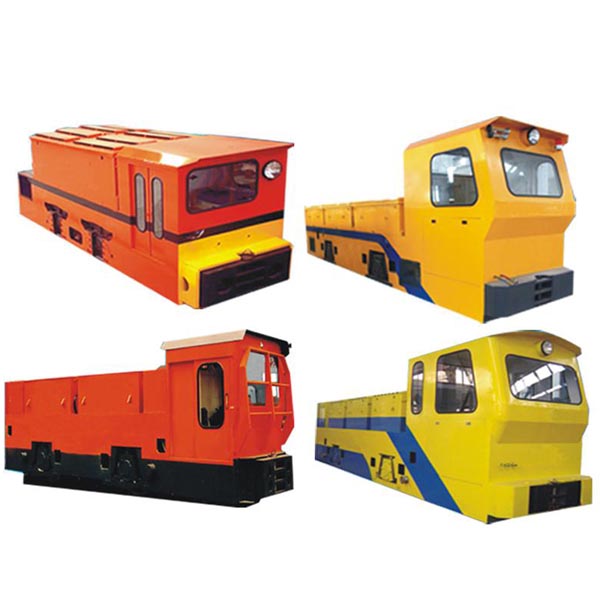

Photos of 8 ton Underground Mine Battery Locomotive for Mine
