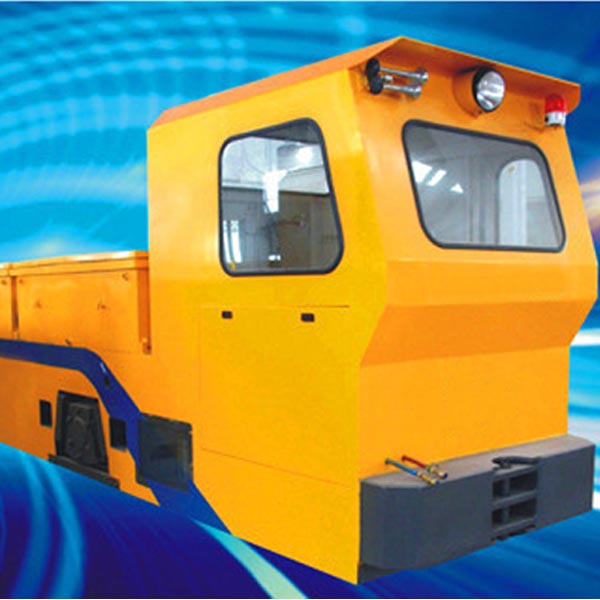

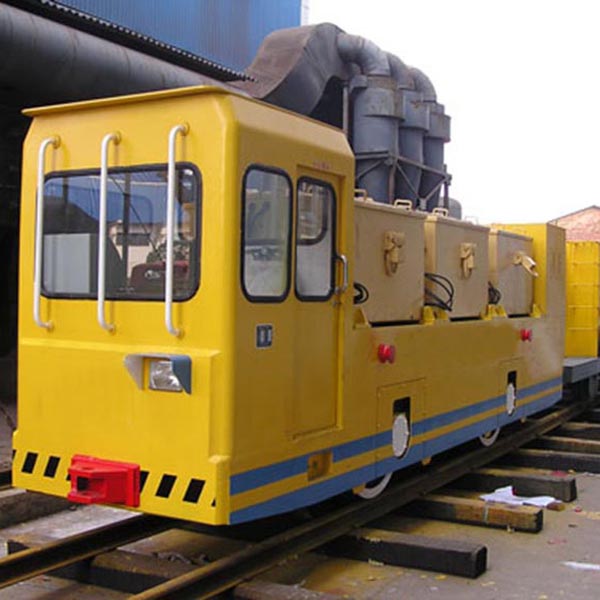

Introduction of CAY45/1435GP 45T Narrow Gauge Battery Locomotive for Mining

CAY45/1435GP 45T Narrow Gauge Battery Locomotive for Mining, together with flat carriage, segment carriage, muck carriage, applied to the subway construction, as well as mining transportation.
It is DC-AC driving, narrow rail battery powered mining locomotive, suitable for transportation tracting on the narrow rail for the field of coal, metallurgic,mine,forest, railway,road tunnel construction and etc.

It has some unique advantages such as strong tractive effort at starting time, excellent braking performance, reliable and easy operation, low operation cost, small volume of converter and high efficiency, it is an ideal transportation vehicle for subway and other channel construction, and also can bring remarkable benefit for the customers.

Features of CAY45/1435GP 45T Narrow Gauge Battery Locomotive for Mining

1. Great tractive effort
2. Heavy duty loading capacity
3. Smoothly climbing and moving
4. Safe braking control system
5. Reliable and easy operation
6. Simple maintenance
7. 25-30% energy saving compared to DC driving type
8. Less emission, Eco-Friendly

Parameter of CAY45/1435GP 45T Narrow Gauge Battery Locomotive for Mining

Model No. specifications	CAY45/9GP	CAY45/1435GP
Adhesive / total weight (t)	45	45
Track gauge (mm)	900	1435
Wheelbase (mm)	2800	2800
Wheel diameter over tread	840	840
Coupler height over Steel rail (mm)	320/430	320/430
Min Curve radius (m)	35	35
Battery volt rating (V)	540(620Ah)	540(620Ah)
Braking method	Mechanical , electrical and air	Mechanical , electrical and air
Max tractive effort (KN)	123.6	123.6
Max speed (km/h)	30	30
Rated speed per hour (km/h)	8.8	8.8
Power of traction Motor (KW)	2*120	2*120
Transmission	Dual bevel gearing	Dual bevel gearing
Controller	AC frequency conversion	AC frequency conversion
Over all dimensions (mm)	829015002400	829020502800
Service & Application	Mucking in mining & tunneling	Mucking in mining & tunneling
