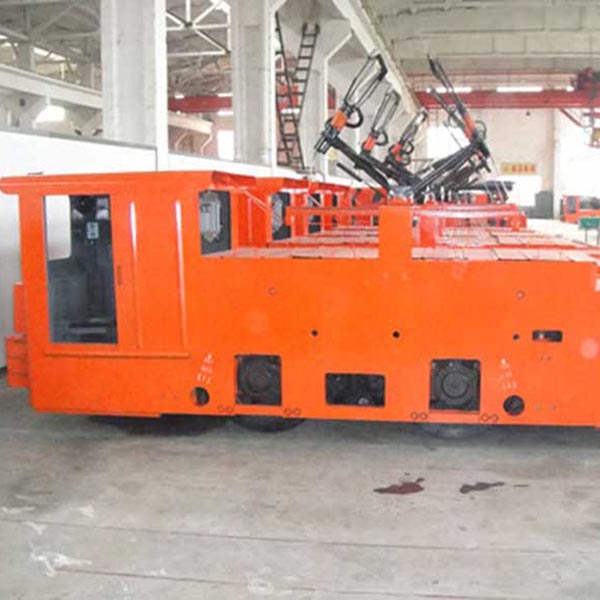

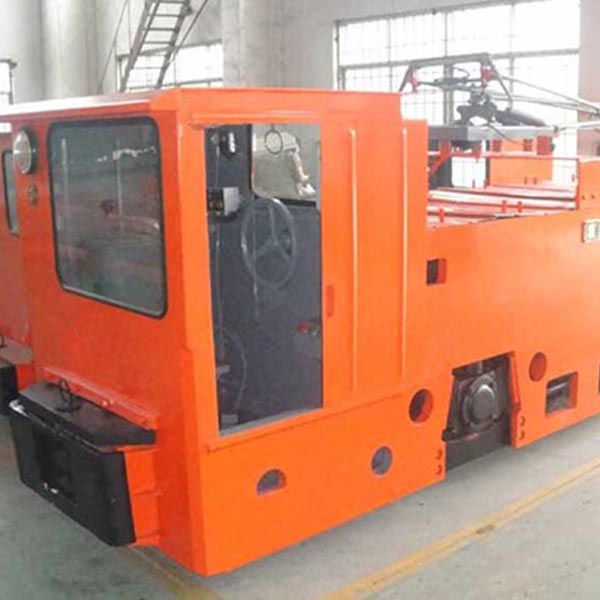

Introduction of 18 Tonner Underground Mine Electric Trolley Locomotives

This 18 Tonner Underground Mine Electric Trolley Locomotives use AC driving technology,it has the advantages such as great tractive effort, heavy duty loading capacity, smoothly climbing and moving, safe braking control system, reliable and easy operation, simple maintenance, 25-30% energy saving compared to DC driving type, less emission, eco-friendly, etc. It is suitable for tracting of train in the main lane of mine, and on the ground.
The electric locomotive can be mainly used as a tractive device for trans-mission of mineral, equipment, equipment and personnel in opencast. Besides, it can also be used for rail bound transmission on the ground within factories or mines, where the power transmission lines (direct current of 250/550V) will supply the electric locomotive with power.

Parameter of 18 Tonner Underground Mine Electric Trolley Locomotives

Specifications	CJY18/6GP	CJY18/7GP	CJY18/9GP
Adhesive Total Weight (t)	18	18	18
Track Gauge (mm)	600	762	900
Wheelbase (mm)	1700	1700	1700
Wheel Diameter Over Tread	680	680	680
Coupler Height over Steel Rail(mm)	320/430	320/430	320/430
Min Curve radius (m)	15	15	15
Pantograph Operation Height (mm)	1800-2400	1800-2400	1800-2400
Braking Method	Mechanical&Electrical+Air	Mechanical&Electrical+Air	Mechanical&Electrical+Air
Max Tractive Effort (KN)	49.4	49.4	49.4
Max Speed (km/h)	25	25	25
Rated Speed per hour (km/h)	10	10	10
Traction Motor Power (KW)	2*45	2*45	2*45
DC Input Power Voltage	DC550	DC550	DC550
Transmission	Dual Bevel Gearing	Dual Bevel Gearing	Dual Bevel Gearing
Controller	AC Frquency Conversion	AC Frquency Conversion	AC Frquency Conversion
Over all Dimensions (mm)	525010601750	525013401750	525013401750
Service & Application	Mucking in Mining&Tunneling	Mucking in Mining&Tunneling	Mucking in Mining&Tunneling
