Mine Diesel Electric Locomotive with Safe Braking Control System

Introduction of Mine Diesel Electric Locomotive with Safe Braking Control System

Diesel Electric Locomotive Manufacture with Safe Braking Control System is designed for horizontal rail transport especially in mines and enclosed spaces. They are also intended for use in potentially explosive environment with coal dust and methane in volume up to 1.5 %. They are certified according to European safety standards. They can work on slopes of rail lines up to 35‰ , with track gauge from 500 to 1060 mm, at ambient temperatures from -20°C to +40°C.
Diesel Electric Locomotive Manufacture with Safe Braking Control System are with single cabin and two cabins weighing from 3.5 t to 18 t. Cabins are removable, due to a simple transport into underground tunnels. Transmission of torque moment from the electric motors is through the axle gearbox to travel wheels. The chassis is of dual-axle type and travel wheels are secured with interchangeable rims. Suspension of locomotive is provided by elastic rubber-metal blocks of sagittal shape or by means of springs in accordance with the track quality.
Three-phase, asynchronous, electric motors with external cooling, and with power from 10 kW to 2x45 kW are practically maintenance-free. Speed and torque of the motors are controlled by a frequency inverter with controller unit. Electric batteries are of the container type and adapted for easy maintenance and replacement. Speed control and braking is proportional by means of one lever, in the whole range of traveling speed.
Locomotive braking is performed by two independent systems on both axles: electrodynamic – it means by electric motors through mechanical gears and mechanical – it means by mechanical dual circuit brake and by mechanical action through direct linkage to travel wheels. Brake control is proportional and maximum brake force/stopping power is self-adjustable. Parking brake is automatic. The security system provides automatic stop of the locomotive engine in a case of failure mode and when exceeding the temperature and pressure limit values. The driver is informed about all conditions by means of a display on the dashboard and such information is saved into control system memory.

Parameter of Mine Diesel Electric Locomotive with Safe Braking Control System

Model		CTY8/6,7,9G or CTL8/6,7,9G
Adhesive Weight		8 tons
Track Gauge		600, 762 or 900mm
Traction		11.18Kn/h		12.83kN/h
Speed		6.2km/h		7.8 km/h
Max. Traction		19.62kN
Power Supply Device	Voltage	110V	132V	140V	144V
	Capacity	440Ah
Power		11kW*2		15kW*2
Size	Length	4470mm-4490mm
	Width	1062, 1212 or 1350mm
	Height	1600mm		1600mm
	Traction Height	320 or 430mm
	Wheelbase	1100mm		1150mm
	Wheel Diameter	Φ680mm		Φ680mm	Φ600mm
Min. Turning Radius		7m
Electromechanical Controller		Resistance, IGBT or Frequency Control
Brake Mode		Mechanical

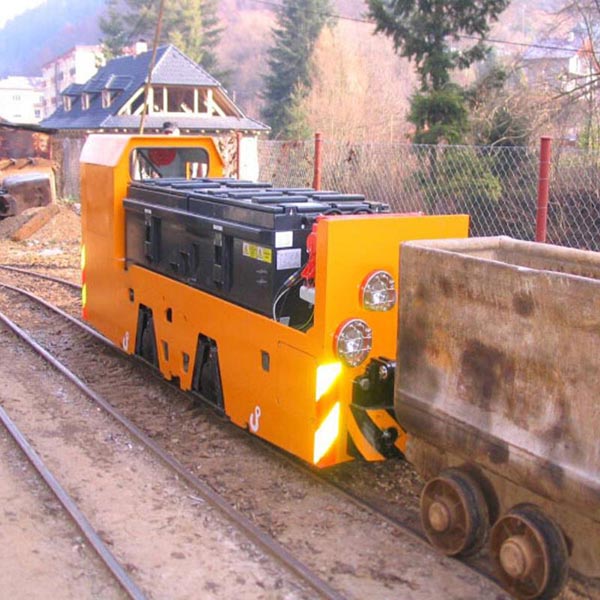

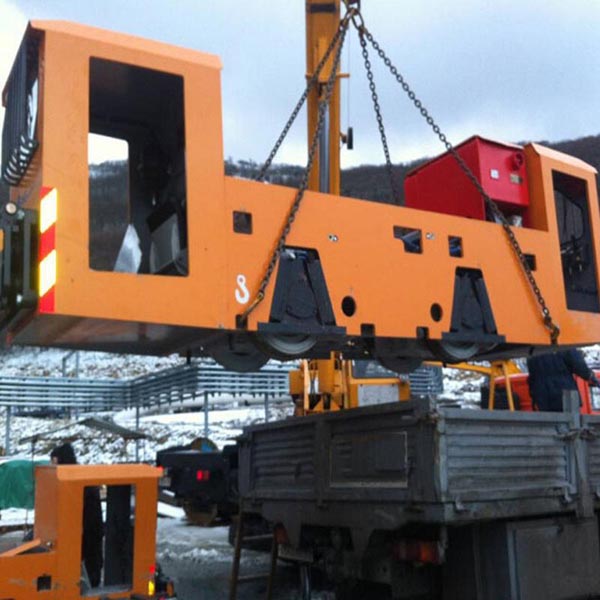

Photos of Mine Diesel Electric Locomotive with Safe Braking Control System
