CAY12 Underground Mine Battery Powered Electric Locomotives

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of CAY12 Underground Mine Battery Powered Electric Locomotives

Basing on special advantage in the field of Mining Equipment control system and advanced technology of AC frequency conversion , we have developed wide range of electrical locomotives :battery powered and trolley type from 2.5 tons through to 55 tons suitable for various track gauge including 600mm, 762mm, 900mm and 1435mm. with the unique feature such as the cab available in three designs: one side type, central type and in Tandem Operation type; Locomotives with Radio Remote Control; and Explosion proof locomotive. some of Models passed MA certificate , mainly service for tunneling , mining, shield construction and related industrial applications. All locomotives are track tested prior to shipment to ensure reliable operation and safe control.
The CAY12 Underground Mine Battery Powered Electric Locomotive is powerful with great tractive effort, heavy duty loading capacity and climbing and moving smoothly.
Braking control system is safe, intelligent, reliable and easy to operate.
Less maintenance requirements.
Energy-saving , up to 25-30% energy saving compared to DC driving type.
Eco-Friendly because its less emission.

Parameter of CAY12 Underground Mine Battery Powered Electric Locomotives

locomotive Model No.

CAY12/6GP

CAY12/7GP

CAY12/9GP

specifications

Adhesive / total weight (t)

12

12

12

Track gauge (mm)

600

762

900

Wheelbase (mm)

1400

1400

1400

Wheel diameter over tread

680

680

680

Coupler height over Steel rail  (mm)

320/430

320/430

320/430

Min Curve radius (m)

10

10

10

Battery volt rating (V)

192/256(560Ah)

192/256(560Ah)

192/256(560Ah)

Braking method

Mechanical and electrical

Mechanical and electrical

Mechanical and electrical

Max tractive effort (KN)

32.9

32.9

32.9

Max speed (km/h)

20

20

20

Rated speed per hour (km/h)

10

10

10

Power of traction Motor (KW)

2*30

2*30

2*30

Transmission

Single level Spur gearing

Single level Spur gearing

Single level Spur gearing

Controller

AC frequency conversion

AC frequency conversion

AC frequency conversion

Over all dimensions (mm)

5300*1060*1590

5300*1340*1590

5300*1340*1590

Service  & Application

Mucking in mining & tunneling

Mucking in mining & tunneling

Mucking in mining & tunneling

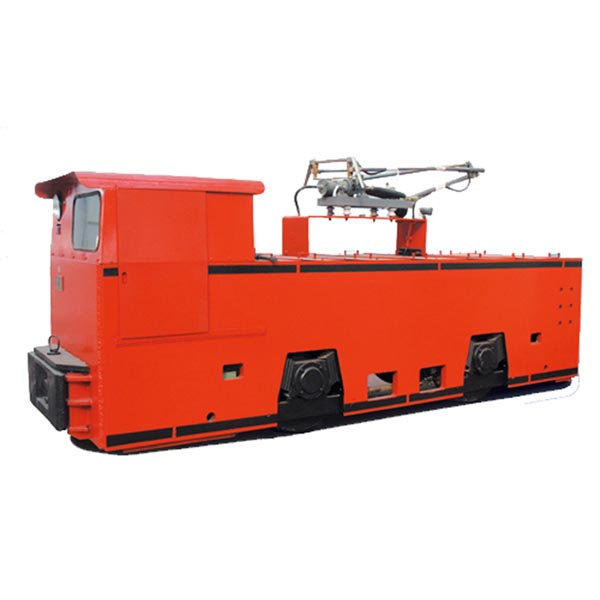

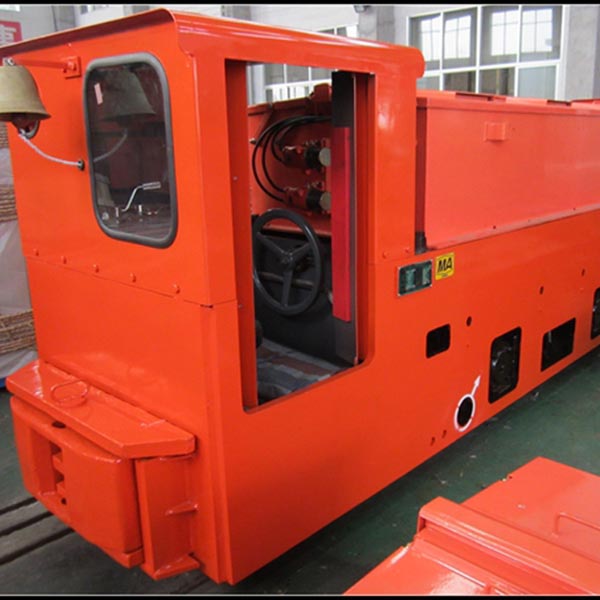

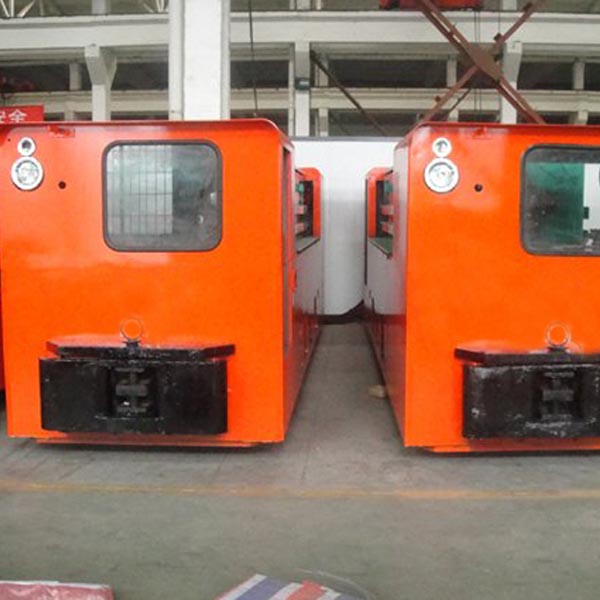

Photos of CAY12 Underground Mine Battery Powered Electric Locomotives
