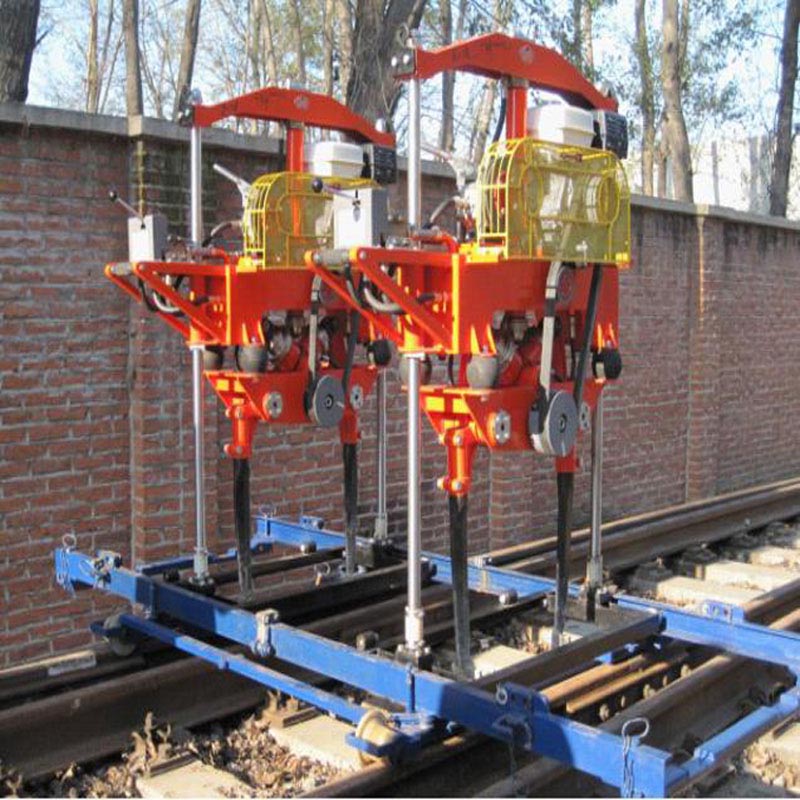

Introduction of Hydraulic Ballast Tamping Machine YD-22 for Railway

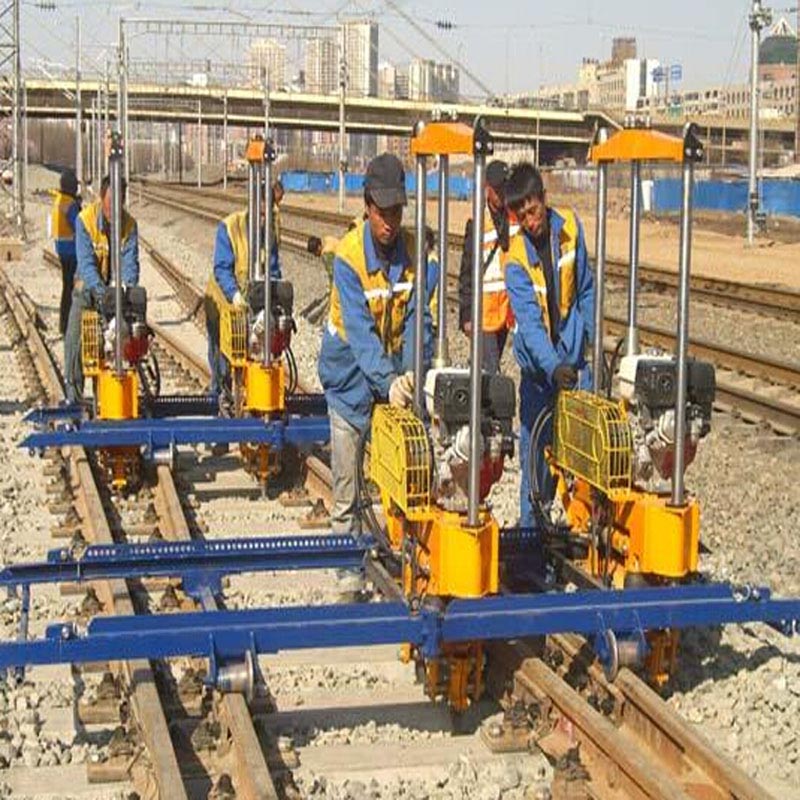

Hydraulic Ballast Tamping Machine YD-22 for Railway is a special purpose machinery used in the maintenance of the railway works. It is mainly used for the ballast tamping of the rail sleeper. It is can be used to work in the interval time of the trains and no need for interval close, It has three kinds of engine, gasoline, diesel, motor.

Parameter of Hydraulic Ballast Tamping Machine YD-22 for Railway

Model	YD-22 Hydraulic Ballast Tamping Machine
Y132S-2 Electric Motor	5.5KW
	2880r/min
	380V/50HZ
Hydraulic System Pressure	5-6MPa
Vibrating Frequency	60-67HZ
Vibrating Force	22KN
Max.Insert Force	16KN
Clamping Force	6.5KNx2
Inserting Depth	110mm±10mm
Efficiency	≥260pcs/(set·hour)
Weight	350KG
Dimension	1300x750x1600mm
