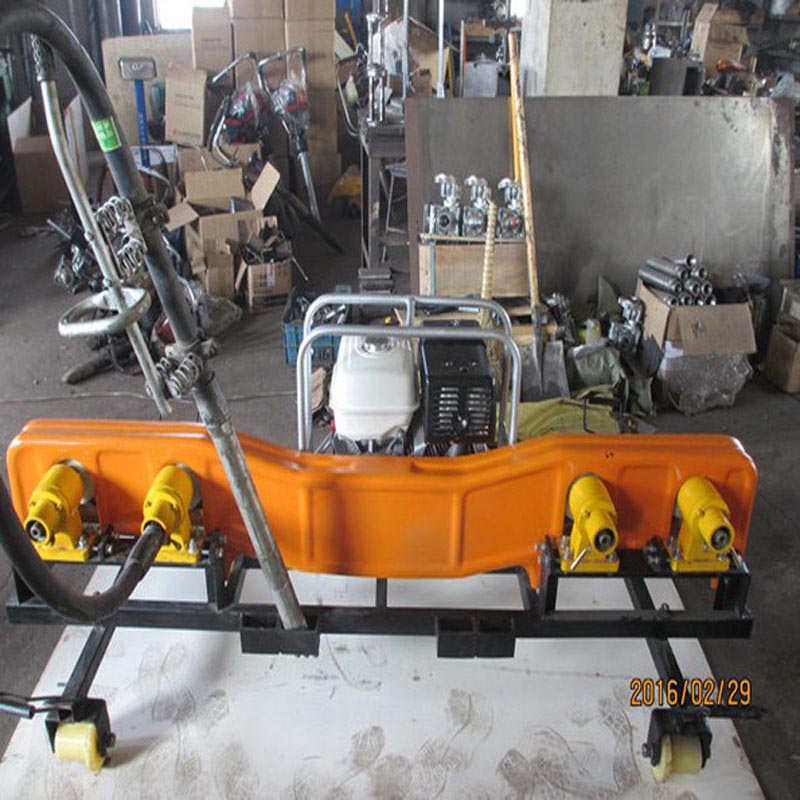

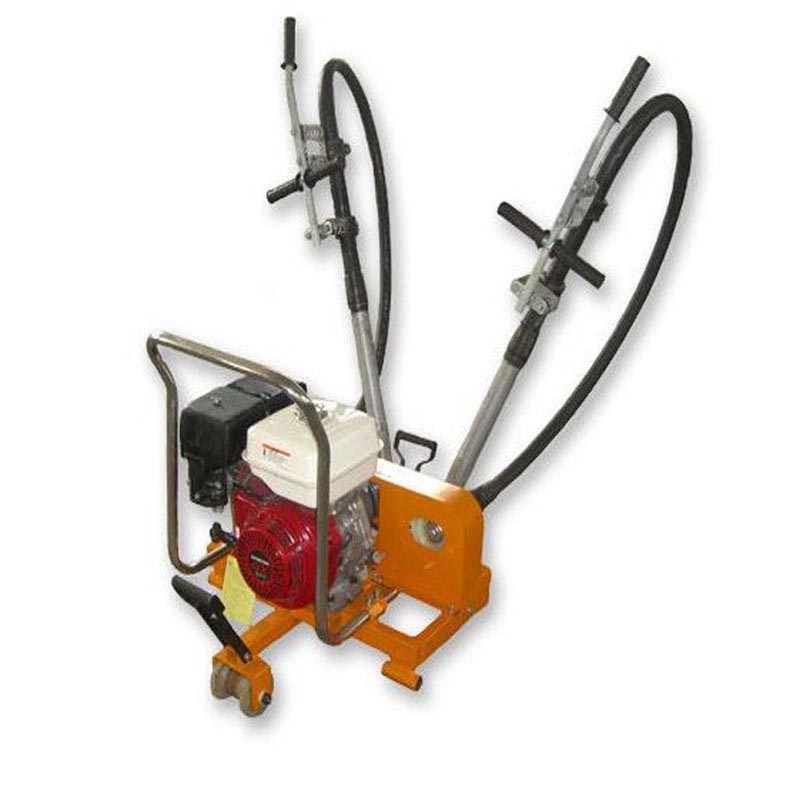

Introduction of ND-4.2*2 Gasoline Engine Rail Track Soft Shaft Tamping Machine

ND-4.2*2 Gasoline Engine Rail Track Soft Shaft TampingMachine is applicable to any rail typ line maintenance ballast tamping operation. Its characteristic is the light weight, easy to operate. Tamping are of good quality and low failure rate and easy maintenance, road speed, applicability, not only to tamping line, still can tamping switch, price performance ratio is high, very suitable for railway ballast tamping operation needs.

Parameter of ND-4.2*2 Gasoline Engine Rail Track Soft Shaft Tamping Machine

Model	ND-4.2*2	ND-4.2*4
Power	GX270 Gasoline engine	GX390 Gasoline engine
Maximum output power	6.6KW	9.5KW
Fuel oil consumption	310g/kW.h	310g/kW.h
Lubricating oil capacity	1.1L	1.12L
Vibration frequency	140-160Hz	140-160Hz
The amplitude	1.25mm	1.25mm
Max Vibration force	4.2kN*2	4.2kN*4
Production efficiency	120-180pc/hour	200-260pc/hour
Vibrating pickax number	2	4
Vibrating pickax diameter	50mm	50mm
Soft shaft diameter	13mm	13mm
Hose diameter	36/46mm	36/46mm
Overall dimensions	800750850mm	1770850870mm
Weight	95kg	180kg
