ND-4 Internal Combustion Rail Tamping Machine

Introduction of ND-4 Internal Combustion Rail Tamping Machine

IND-4 Internal Combustion Rail Tamping Machine is a small road suitable for railway track maintenance machinery, mainly used for ballast track tamping homework. Its novel design, compact structure, is a kind of way rapidly up and down, stamping equipment, convenient operation is particularly suited to switch tamping homework.
This machine is mainly composed of gasoline engine, the vibration damping device, a transmission axis, a vibration body and hand, constitute a complete independence of handheld tamping machine, neither the long cables, no heavy soft shaft, compact and reasonable structure, easy to use.

Parameter of ND-4 Internal Combustion Rail Tamping Machine

a. petrol engine power	1.42kw
b. vibrating force	≥4.2KN
c. idling amplitude	≥?5mm
d. frequency	120~140HZ
e. diameter of vibrating & tamping bar	52mm
f . rev. speed of eccentric block	7000-8000r/min
g. total weight	16kg

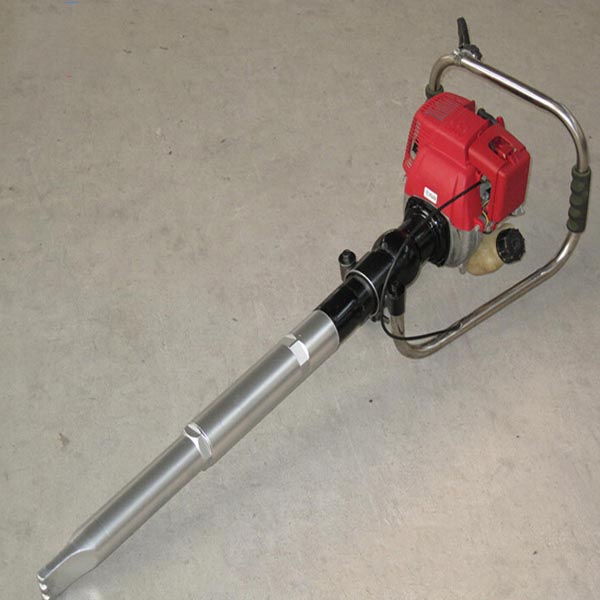

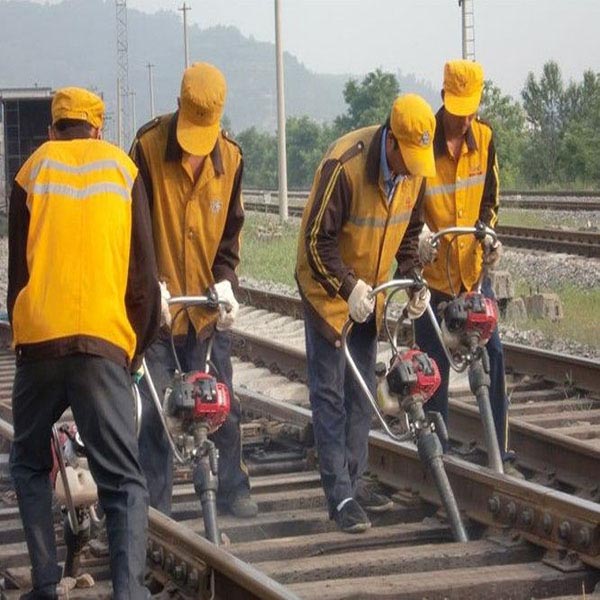

Photos of ND-4 Internal Combustion Rail Tamping Machine
