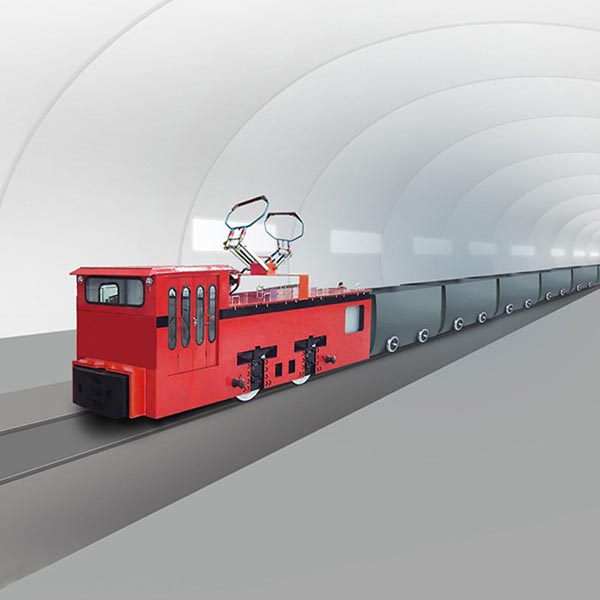

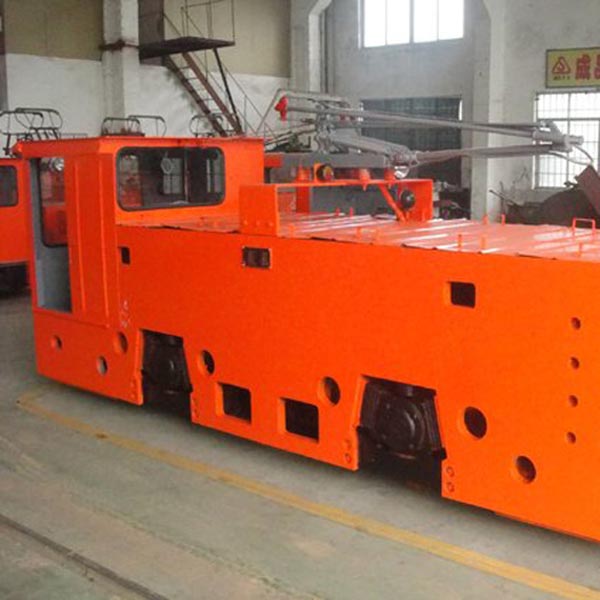

Products Detail
|
Specifications |
CJY14/6GP |
CJY14/7GP |
CJY14/9GP |
|
Adhesive Total Weight (t) |
14 |
14 |
14 |
|
Track Gauge (mm) |
600 |
762 |
900 |
|
Wheelbase (mm) |
1700 |
1700 |
1700 |
|
Wheel Diameter Over Tread |
680 |
680 |
680 |
|
Coupler Height over Steel Rail(mm) |
320/430 |
320/430 |
320/430 |
|
Min Curve radius (m) |
15 |
15 |
15 |
|
Pantograph Operation Height (mm) |
1800-2400 |
1800-2400 |
1800-2400 |
|
Braking Method |
Mechanical&Electrical+Air |
Mechanical&Electrical+Air |
Mechanical&Electrical+Air |
|
Max Tractive Effort (KN) |
38.5 |
38.5 |
38.5 |
|
Max Speed (km/h) |
25 |
25 |
25 |
|
Rated Speed (km/h) |
10 |
10 |
10 |
|
Power of Traction (kw) |
2*37 |
2*37 |
2*37 |
|
DC Input Power Voltage |
DC550 |
DC550 |
DC550 |
|
Transmission |
Dual Bevel Gearing |
Dual Bevel Gearing |
Dual Bevel Gearing |
|
Controller |
Resistance or IGBT |
Resistance or IGBT |
Resistance or IGBT |
|
Over all Dimensions (mm) |
5250*1060*1750 |
5250*1340*1750 |
5300*1340*1750 |
|
Service & Application |
Mucking in Mining&Tunneling |
Mucking in Mining&Tunneling |
Mucking in Mining&Tunneling |
