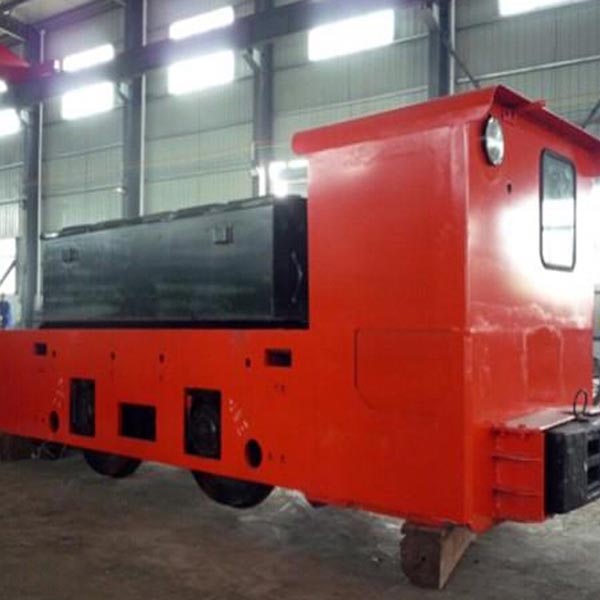

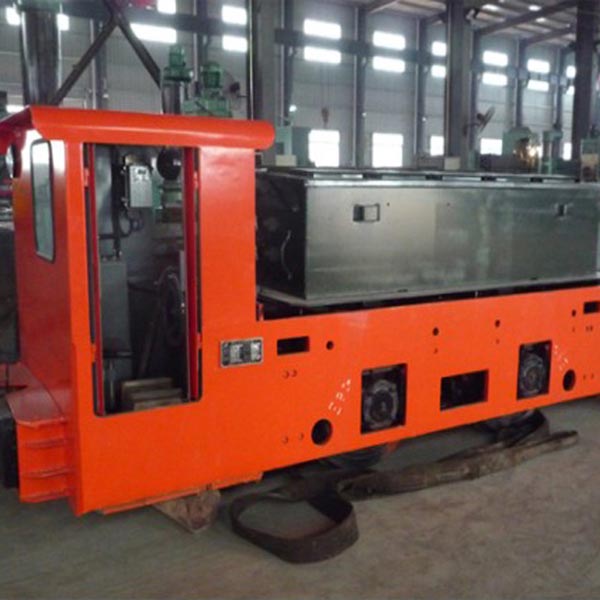

Introduction of China Coal Mining Use Diesel Locomotive

The feature of China Coal Mining Use Diesel Locomotive is traction invert control the starting, speed, direction change and braking, which decreased energy consumption, have good electric-saving effect. Invert have shake-proof, damp-proof and dust-proof function, the control loop controlled by 24V, 0.5A light current, with good safety performance, with interlock function when direction change, which avoid damage if driver using anti-vehicle braking.
The locomotive with simple construction, low defective rate, easy to maintenance.

Parameter of China Coal Mining Use Diesel Locomotive

Model			CTY5/6,7,9G
Adhesive Weight			5t
Gauge			60,762 or 900mm
Traction Force			7.06kN
MAX Traction Force			12.26kN
Speed			7km/h
Power Supply		Voltage	90V
		Capacity	385Ah
Motor Power *sets			7.5 kW*2
Dimension	Length		2850mm
	Width		920,1082/1220mm
	Height		1550mm
	Wheelbase		850mm
	Wheel Diameter		Φ520mm
MIN Turning Radius			6m
Way of Speed Control			Resistance or Chopped wave
Braking Control			Mechanism or hydraulic pressure
