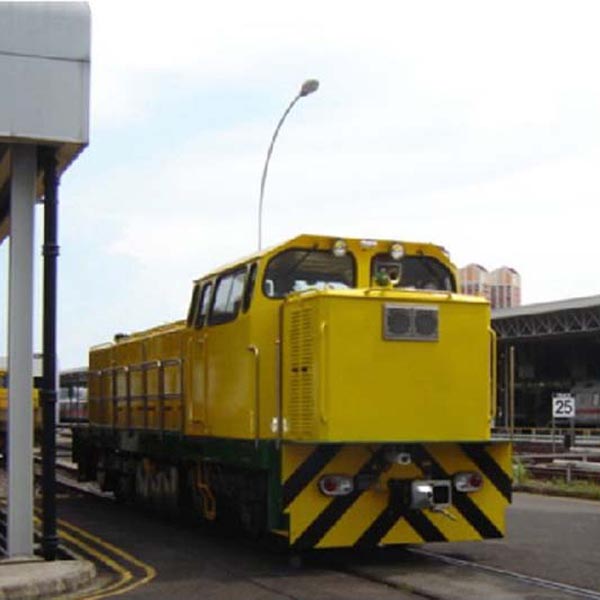

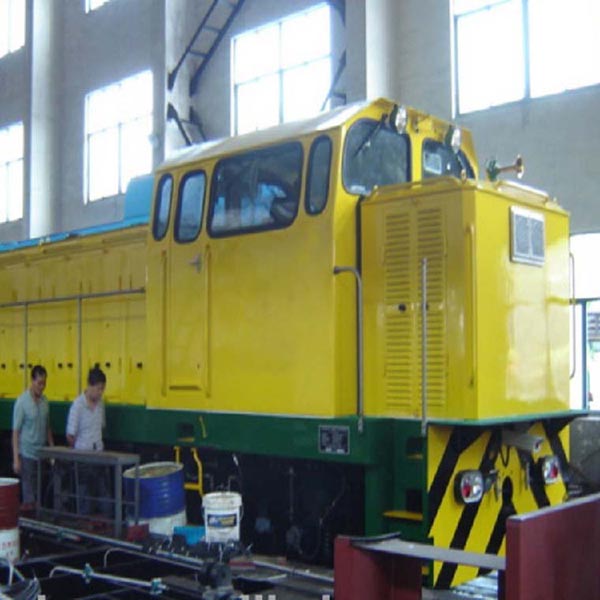

Introduction of JMY600 Diesel Hydraulic Mining Locomotive

About JMY600 Diesel Hydraulic Mining Locomotive , the diesel engine shall at least be compliant with EU-RL, Directive 2004/26/EC, Stage III or US EPA Tier 3 requirements for “off road” diesel engines. The concentration of toxic emissions in the neat exhaust of the diesel engine must not exceed the specified limits as stipulated in the above requirements.

Parameter of JMY600 Diesel Hydraulic Mining Locomotive

Overall dimension (LxWxH)	10,900 x 2,700 x 3,680 mm.
Power	551.5 KW
Construction Speed	64 Km/h
Maximum speed in CM	50 Km/h
Locomotive service weight	56+/- 3% Ton
Axle load	14+2%Ton
Wheel Diameter	Dia. 850 +/- 5mm
Track gauge distance	1435mm
Minimum passing curve	80mm @ max. speed of 10 km/h.
Coupler type	Scharfenberg 35
Coupler height	770 +/- 5mm
Brake type	JZ-7 Air Brake System.

Hydraulic Transmission Box

Type	A969 FI 2.2 (B)
Type of torque converter	B45, B85.
Gear shifting mode	Automatic or Manual
Battery unit	Type GNC 170 high power nickel-cadmium alkaline battery, 170 AH. One set 22 units.
