CCG Mining Explosion-proof Diesel Locomotives

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of CCG Mining Explosion-proof Diesel Locomotives

CCG Mining Explosion-proof Diesel Locomotives is a kind of driven, the vehicle with proof performance for containing flammable gas and coal dust and other dangerous places, traction, transport of mining locomotives, traction battery and then following the hydraulic transmission of a utility model traction. Mine explosion-proof drum & rail locomotive diesel engine series, is in line with the ideal of coal mine production safety transportation equipment. It is reasonable structure, compact, energy saving, high efficiency, easy operation and maintenance, frame lines motor vehicle, motorcycle batteries, compared does not need to set up traction power, do not need AC power and charging equipment.

Characteristics of CCG Mining Explosion-proof Diesel Locomotives

1.Double-ended locomotive driving, easy operation and passengers, and better outlook;
2.Body short, maintaining roadway turning radius by the flexibility and stability;
3.Electric starter, control rooms for sound processing, noise reduction;
4.By (European) import the essence of device, the second exhaust gas treatment, to further reduce emissions.

Parameter of CCG Mining Explosion-proof Diesel Locomotives

Model (basic

parameter)

Item

CCG 3.0/600J (B)

CCG 5.0/600J (B)

CCG8.0/600J

Matched Power Model

ZS1115FB

YH1125SFB

YH4108DFB(A)

Dimension (L*W*H) mm

2400*920(1000)*1600

3020*1000(1098)*1600

3700*1100*1600

Weight kg

3000

5000

8000

Greatest Traction

Force KN

4.5

7.5

12

Pulling Tonnage T

15

22

35

Gauge mm

600(made to order)

Wheelbase mm

706(712)

880(860)

980

Greatest Speed km/h

15+1

17+1

20+2

Diesel Engine Power (kw)/Rotating Speed (r/min)

11/2200

14.7/2200

52/2400

Smallest Railway Orbit m

5

6

7

Greatest Braking Force N

5000

8000

12800

Traction Height mm

270 320

320 430

320 430

Braking Distance m

40

Height Above Ground mm

80

125

125

Braking Mode

foot and machine control

air and hand wheel control

Exhaust Quality

CO≤0.1% NOX≤0.08%

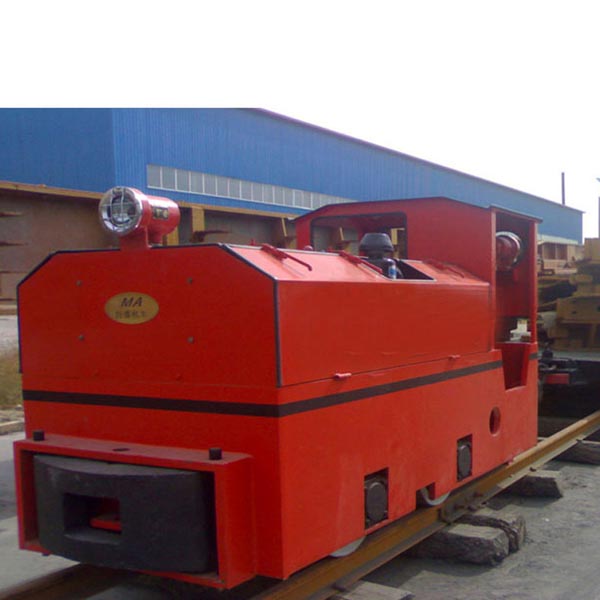

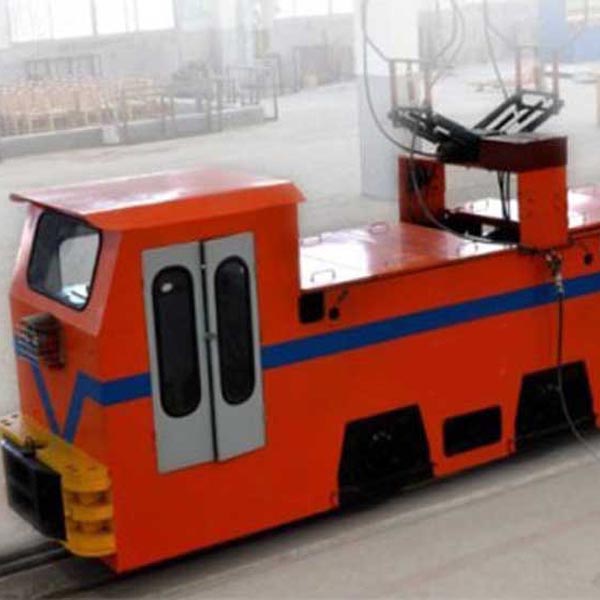

Photos of CCG Mining Explosion-proof Diesel Locomotives
