Rescue Flat Rubber Cushions High Pressure Air Lifting Bags

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of Rescue Flat Rubber Cushions High Pressure Air Lifting Bags

1. The Rescue Flat Rubber Cushions High Pressure Air Lifting Bags are made up of aromatic polyamide fiber reinforcement, 4 layers in total. Primarily used in low insertion situations with heavy weights to be lifted such as, building lifting, emergency rescue, vehicle extrication, heavy recovery and truck moving and so on.
2. Thickness of the air cushion bag are only 25mm which can lift tons of objectives easily.

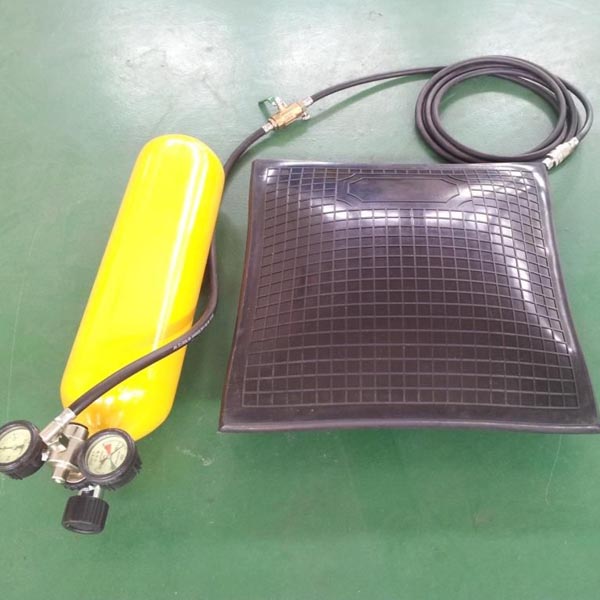

3. This air cushion bag can be powered by high pressure gas cylinder, foot air pump or pump station.
4. Anti-skipping design on the surface and thicken edge of the Air Lifting Bags ensures the safety during operation.

Applications of Rescue Flat Rubber Cushions High Pressure Air Lifting Bags

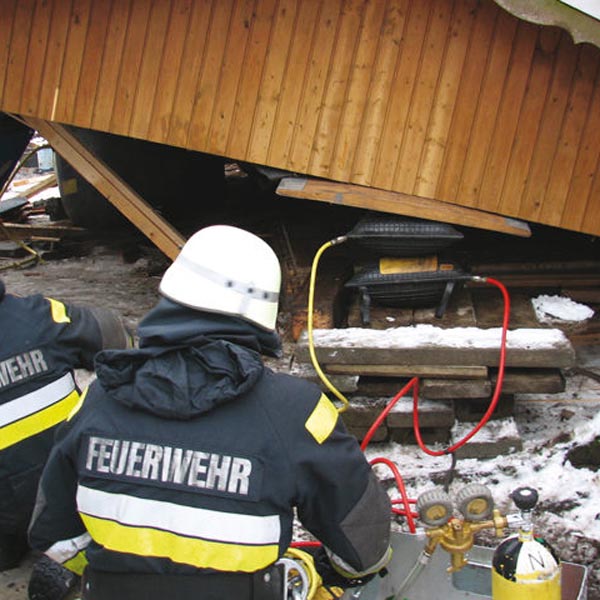

This Rescue Flat Rubber Cushions High Pressure Air Lifting Bag can be used for vehicle extrication, building collapse, disaster rescue, aircraft accident etc. namely rescue situations.

Features of Rescue Flat Rubber Cushions High Pressure Air Lifting Bags

1. Noiseless, shamble, lift the heaviest object stably;
2. Long using life, the special anti-skip design on surface can maintain the skid resistance when work on grass/ sediment etc;
3. Wear-Resisting & Anti-crack;
4. Corrosion resisting & Flexible.

Parameter of Rescue Flat Rubber Cushions High Pressure Air Lifting Bags

Name

Dimension(mm)

Weight(kg)

Lifting Height(mm)

Lifting Capacity(T)

Filling Time(s)

High Temperature Resistant(℃)

Low Temperature Resistant(℃)

QQD3-100/0.8 Rescue Lifting Air Cushion

150*150

0.6

70

1

<30

+70

-40

250*250

105

110

5

<30

+70

-40

320*320

2.5

130

8

<30

+70

-40

370*370

4.0

160

10

<30

+70

-40

450*450

5.3

200

15

<30

+70

-40

500*500

6.5

220

18

<30

+70

-40

550*550

8.1

250

22

<30

+70

-40

600*600

11.2

280

28

<30

+70

-40

650*650

13.3

360

32

<30

+70

-40

750*750

18.2

420

40

<30

+70

-40

850*850

22.5

450

45

<30

+70

-40

900*900

25.3

500

54

<30

+70

-40

950*950

28.6

550

68

<30

+70

-40

Photos of Rescue Flat Rubber Cushions High Pressure Air Lifting Bags
