Confined Space Rescue Tripod with Self-lock Device

Introduction of Confined Space Rescue Tripod with Self-lock Device

The Confined Space Rescue Tripod with Self-lock Device is mainly used for rescue operations in high altitude, cliff and confined space, such as underground pipe, shaft, cesspit, closed container etc. Widely used by firefighting, municipal administration, mining etc rescue institution.
Ring protection chain on the feet of rescue tripod;
Self-lock device on winch of the rescue tripod, which ensures lock-in in any position, to make sure the safety of the sling;
Special stainless steel sling with good suppleness is taken used. The sling will not be damaged by  corrosion or lack of oil;
The length of legs can be adjusted, suitable for rugged rescue situations

Parameter of Confined Space Rescue Tripod with Self-lock Device

Name	TRIPOD EVO rescue tripod
Closed length	130cm
Extension length	228cm
Operating Load	400kg
Breaking Load	1200kg
Max. Prevent breaking force	22KN/4944.94Lbs(Steel Wire Rope)
Length scope	134-214cm
Packing Dimension	175*23*23cm
Weight	17.3kg
Winch with Automatic brake device
Wire length	25m(NO. 284.01)
Wire Diameter	5mm
Operating load	180kg
Breaking Load	1800kg
Weight	13kg

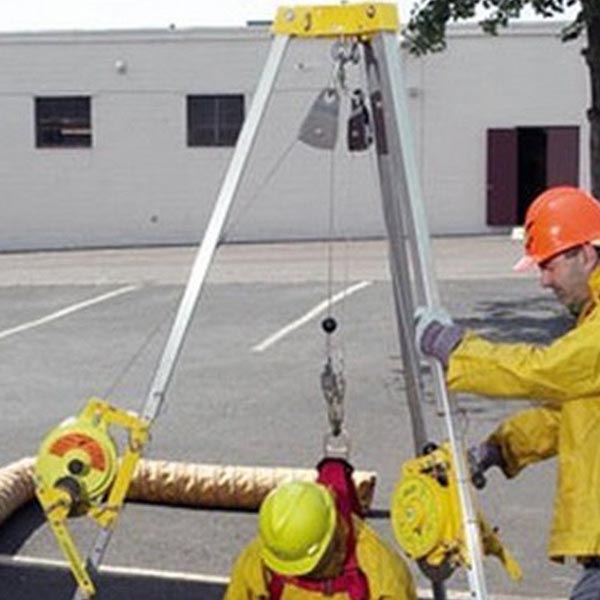

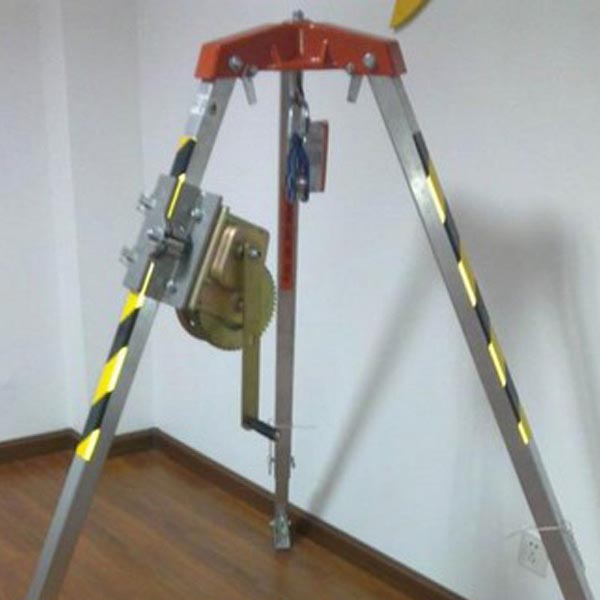

Photos of Confined Space Rescue Tripod with Self-lock Device
