KJYF-96/8/10/12/16 Mining Movable Escape Capsule

Introduction of KJYF-96/8/10/12/16 Mining Movable Escape Capsule

KJYF-96/8/10/12/16 mining movable escape capsule can provide a safe haven for those workers who can not evacuate when a coal mine explosion and other unexpected disasters occurs.It can withstand high temperatures outside, the impact of the explosion, roof fall and cut off the invasion of harmful gases.It can provide oxygen, food, water and other necessities of life for hedging staff,And treatment of hazardous and toxic gases,and treatment of hazardous and toxic gases.

Applications of KJYF-96/8/10/12/16 Mining Movable Escape Capsule

Coal and gas outburst, gas and coal dust explosions, roof fall and other dangerous
Ambient temperature: 55℃（4h）;30℃（96h）
Relative Humidity: 0-95%(25℃)
Altitude: ≤1000M

Technical Advancements of KJYF-96/8/10/12/16 Mining Movable Escape Capsule

Robust Construction-Engineered and constructed to withstand 15 psi overpressure.
Fresh, Breathable Air Supply System-Provides up to 96 hour air supply from medical grade oxygen and compressed air tanks.
CO2 Scrubber System-Patent pending CO2 Scrubber powered by compressed air removes carbon dioxide using soda lime chemicals.
Standard & Custom Sizes-Strata Safety Refuge Chambers are available in standard & custom sizes to meet individual customer needs. This includes custom length and heights of the structure.
Air-Tight Design-Air-tight chamber design provides immediate supply of breathable air upon entry.
Air-Lock Entry-Air-lock entry minimizes contaminants entering the main chamber.
Drinking Water & Food-Includes food & drinking water in storage compartments.
MSHA Approved Gas Detector-MSHA approved gas detector checks for O2/CO/CH4/H2S levels inside the chamber. A sampling pump can be used to test air outside the chamber. (CO2 levels can be easily calculated by subtracted O2 levels from 100). Optional CO2 detecting monitors also available.
MSHA Approved Flashlights-MSHA approved flashlights for internal use.
Highly Reflective Signage-Highly reflective signage and an MSHA approved flashing light assist in locating the chamber.
Moves Readily-Built-in fork lift guides, lifting facility and skid base assist with moving & relocating the refuge chamber.
Environmental Toilet-Toilet & waste bags in a private compartment with external waste disposal.
Cushioned Seating & Storage Areas-Cushioned seating for all occupants & storage areas for additional supplies/equipment.
Fire Extinguisher-Chamber includes fire extinguisher.
Escape Hatch-Built-in emergency escape hatch.

Parameter of KJYF-96/8/10/12/16 Mining Movable Escape Capsule

Dimension	11.0m（L）×1.7m（W）×2.0m（H）
Internal cross-sectional dimension	1.46m（wide）×1.78m（high）
Cabin thermal insulation layer thickness	50—80mm
Total weight	13t
Rated rescue persons	16person
Rated guard time	≥96h（safety factor 1.1）
Explosion pressure shock resistant	1MPa
Instantaneous temperature capability	Not less than the environment temperature1200℃ 3s
anti-sustained high temperature capability	the temperature inside of the cabin will keep under
33℃ for 50h, when the outside temperature environment is 55℃
Positive pressure inside of cabin	100Pa~500Pa
Density of oxygen	18.5%~22.5%
Density of carbon dioxide	≤0.8%
Density of carbon monoxide	≤24ppm
Temperature	≤33℃
Relative humidity	≤85

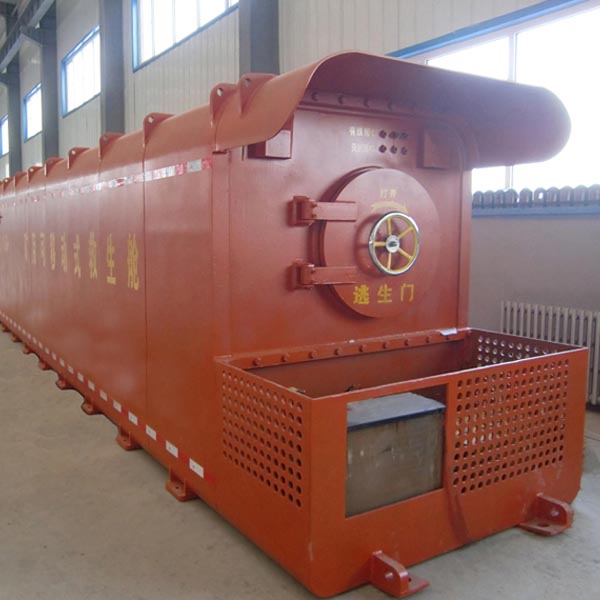

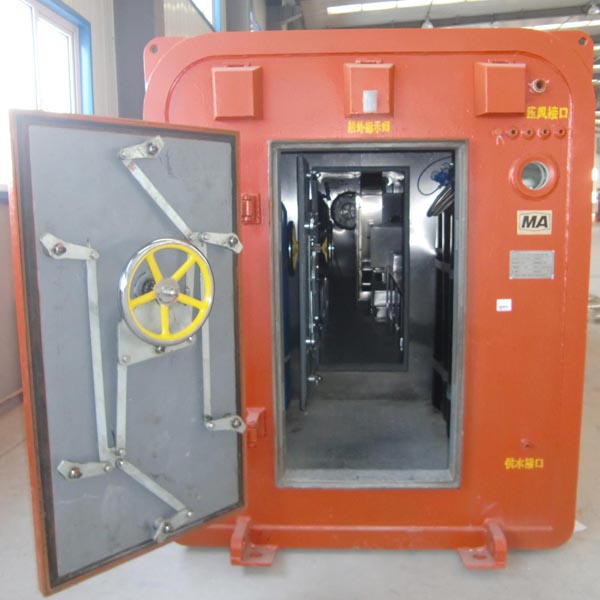

Photos of KJYF-96/8/10/12/16 Mining Movable Escape Capsule
