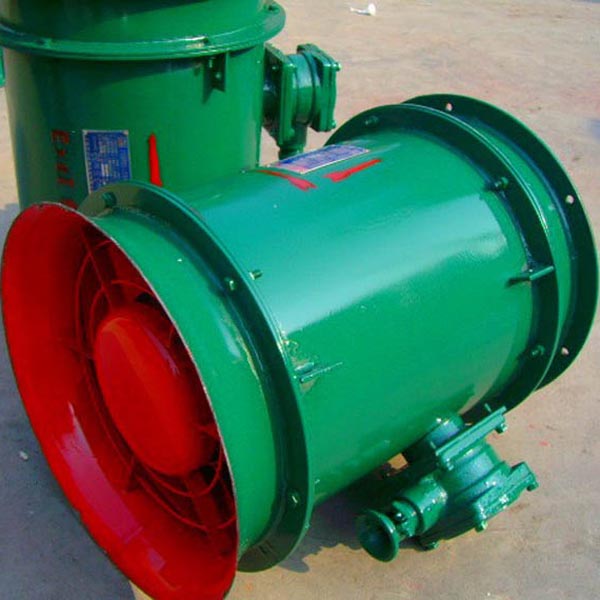

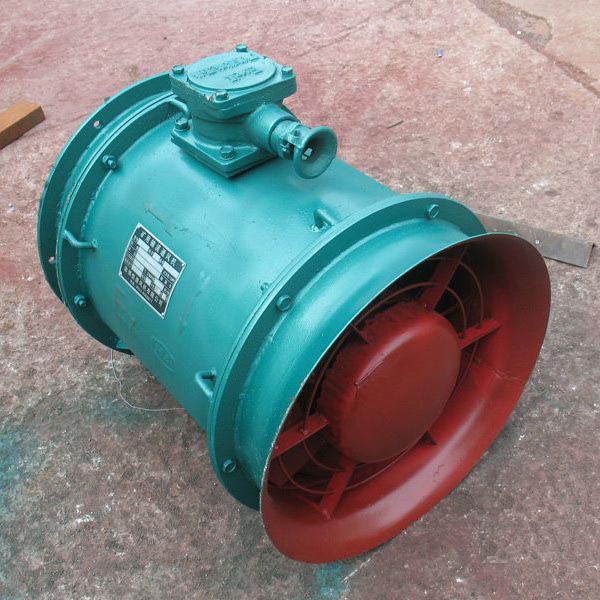

Introduction of Flameproof High Temperature Resistant Smoke Exhaust Ventilating Fan

Flameproof High Temperature Resistant Smoke Exhaust Ventilating Fan can be widely used in complex environment such as mine, tunnel, food ,medicine,metallurgy,power plants ,transportation and so on.

In strict accordance with the production requirements of explosion-proof electric motors.

The transmission medium temperature does not exceed 40 ℃, humidity less than 95 ± 3% (25 ℃) and non-corrosive.

Parameter of Flameproof High Temperature Resistant Smoke Exhaust Ventilating Fan

Model	YBT-2.2	YBT-5.5	YBT-7.5	YBT-11	YBT-18.5	YBT-22	YBT-30
Pressure(Pa)	960-380	1700-800	1900-900	2250-800	2400-520	3200-680	3500-800
Air Volume(m3/h)	55-101	90-180	100-210	130-240	195-300	240-370	250-800
Total pressure efficiency(%)	76	76	80	80	80	80	80
Noise(dB(A))	87	89	89	91	95	95	95
Impeller diameter(mm)	315	400	400	500	560	560	600
Power(KW)	2.2	5.5	7.5	11	18.5	22	30
