Introduction of SHT Series Portable Single Phase Explosive Proof Ventilator Fan

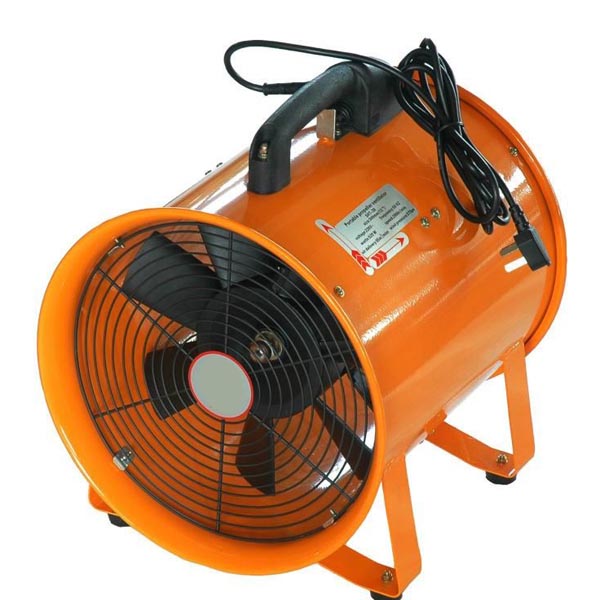

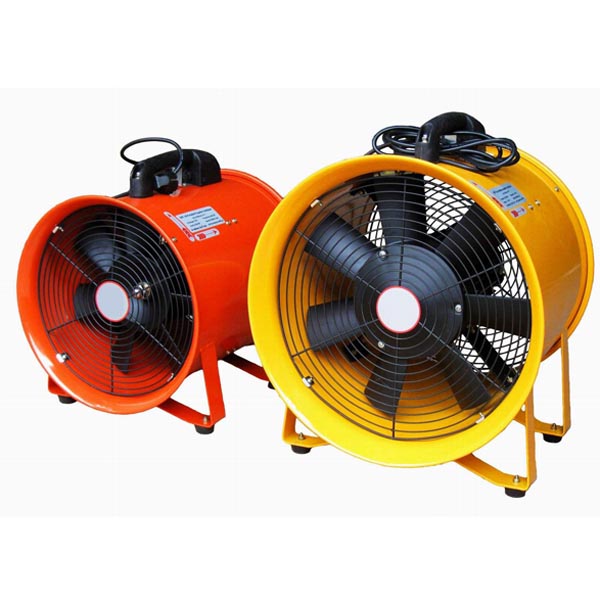

SHT Series Portable Single Phase Explosive Proof Ventilator Fan has a circular steel casing and safety grills on the front and back, also includes a heavy duty carrying handle which makes it very safety and portable. The ventilator has the advantages of durable and firm structure, good insulation, high pressure and large air volume, it is the professional ventilator of shipbuilding, mechanics and engineering.
Application of SHT Series Portable Single Phase Explosive Proof Ventilator Fan
1 supplying fresh air in confined space
2. removal of heat, fumes from sewers, tunnels, ship holds
3. cooling machinery, boilers, generators
4. bouncy castle inflation
5. venting smoke from fire brigade test room

Parameter of SHT Series Portable Single Phase Explosive Proof Ventilator Fan

model no.	Diameter	voltage	Phase	Frequency	speed	watts	capacity	static	noise
SHT	mm	v		Hz	r/min	W	M3/min	pa	dB(A)
SHT-20	200(8'')	110/220	1	50/60	2800	230	25	245	63
SHT-25	250(10'')	110/220	1	50/60	2800	320	43	294	68
SHT-30	300(12'')	110/220	1	50/60	2800	520	65	373	71
SHT-35	350	110/220	1	50/60	2800	750	82	598	76
SHT-40	400(16'')	110/220	1	50/60	2800	1100	96	700	80
SHT-40	400(16'')	380	3	50	2800	1100	96	700	80
SHT-45	450	220	1	50	2800	1500	162	972	83
SHT-45	450	380	3	50	2800	1500	162	972	83
SHT-50	500(20'')	220	1	50	2800	2000	200	1050	88
SHT-50	500(20'')	380	3	50	2800	2000	2000	1050	88
SHT-60	600(24'')	380	3	50	1400	2200	240	1100	92
