AE101A Oxygen Gas Filling Pump

Introduction of AE101A Oxygen Gas Filling Pump

AE101A Oxygen Gas Filling Pump is designed for a variety of oxygen breathing apparatus, compressed oxygen self-rescuer and oxygen equipment needs filling high pressure gas transfer and filling design of special equipment. It will boost the gas source gas bottle filled to the stingy bottle, so the gas pressure within the cylinder up to the required pressure. The products are mainly for filling oxygen, but also for boosting filling carbon dioxide, nitrogen and other gases.

Features of AE101A Oxygen Gas Filling Pump

1. Suitable for filling oxygen and inflammable gases.
2. high charging efficiency.
3. Product rigorous structure, small size, light weight.
4.The product is simple, easy maintenance, low cost.

Applications of AE101A Oxygen Gas Filling Pump

Mine rescue, fire protection, petroleum, chemical industry, metallurgy, medical, transportation, shipbuilding, defense

Parameter of AE101A Oxygen Gas Filling Pump

Model	AE101A	AE102A
Inflation pressure	20Mpa	30Mpa
Displacement under suction conditions	5L/min	3L/min
Voltage	220V/380V	220V/380V
Maximum compression ratio	4	8
Compressor stages	1	2
Power	1.1KW	2.2KW
Working temperature	0-60℃	0-60℃
Size	860*565*640mm	940*500*700mm
Weight	116kg	120kg

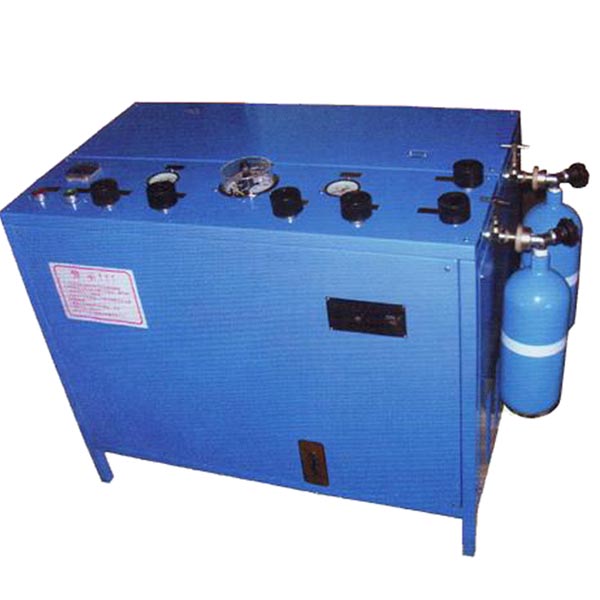

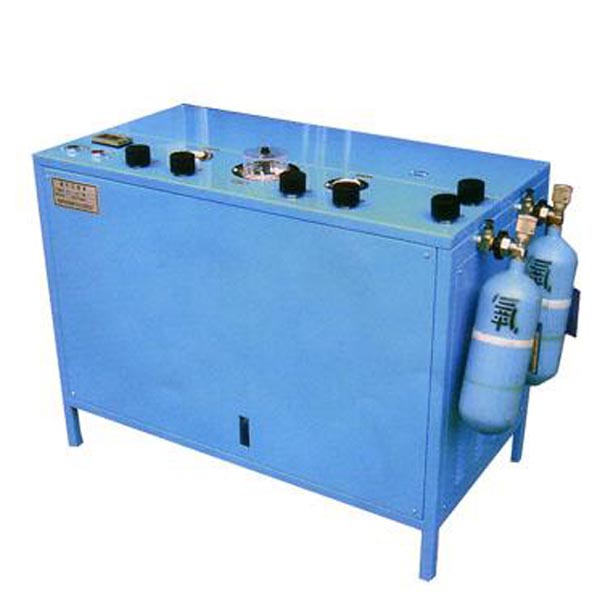

Photos of AE101A Oxygen Gas Filling Pump
