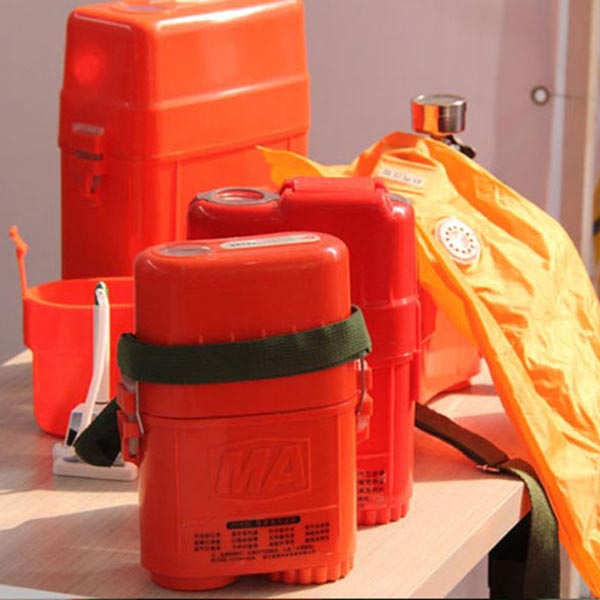

Introduction of ZYX Series Isolated Compressed Oxygen Self- Rescuer

ZYX Series Isolated Compressed Oxygen Self- Rescuer is mainly used in coal mine or environmental air pollution of poisonous gas and asphyxia hazards,field personnel quickly wear,the protection of human normal breathing to flee coal mine workers in the event of gas outburst,fire and explosion disaster accident,as well as rescue workers in respiratory failure using rapid evacuation.
ZYX Series Isolated Compressed Oxygen Self- Rescuer is mainly composed of the respiratory system and the CO2 filter system of high pressure system,consisting of high pressure system including oxygen bottles,oxygen bottle switch,pressure regulator,automatic and manual supply valve and pressure gauge.
Respiratory system consists of mouth,nose clip,breathing hose,air,exhaust valve and breathing valve.

Parameter of ZYX Series Isolated Compressed Oxygen Self- Rescuer

Model	ZYX30	ZYX45	ZYX60	ZYX120
Protect time	≥30min	≥40min	≥60min	≥120min
Capacity of oxygen bottle	0.3L	0.38L	0.4L	1.0L
Oxygen storage capacity	56L	80L	140L	240L
Inspiratory oxygen concentration	25%	25%	25%	25%
Inhaled carbon dioxide concentration	2%	2%	2%	2%
Quantitative supply of oxygen	1.2L/min	1.2L/min	1.2L/min	1.2L/min
Manual supply of oxygen supply	60L/min	60L/min	60L/min	60L/min
Cylinder filling pressure	20Mpa	20Mpa	20Mpa	20Mpa
Period of validity	3-5 years	3-5 years	3-5 years	3-5 years
Outline dimensions	21016780mm	22517790mm	23518092mm	285205100mm
weight	1.8kg	2.1kg	2.4kg	4.3kg
