China Coal Mining DWB Light Single Hydraulic Prop

Introduction of China Coal Mining DWB Light Single Hydraulic Prop

Coal Mining DWB Light Single Hydraulic Prop Made in China for foreign Note constant resistive temporary pillars, it is mainly used in coal mines to dig ends temporary support, can also be used for other mining and geotechnical engineering applications require temporary shoring, the use of lightweight composite products material produced. Available coal hydrostatic water to make it work, with a light weight corrosion-resistant and easy to operate and so on.
Coal Mining DWB Light Single Hydraulic Prop Made in China Application Scope
Coal Mining DWB Light Single Hydraulic Prop Made in China for the temporary support equipment, is the coal industry for roadway excavation, roadway maintenance for advanced support and temporary support of the new equipment. The product is an emulsion or hydrostatic water as the working medium, as key parts (plunger, cylinder, base, return spring, etc.) with a leading anti-corrosion technology, there are certain acid and alkali resistance, suitable for different work environment for working resistance ≤ 30kN the temporary support is brittle FRP materials should be used to avoid the impact, supporting the use of three valves.

Parameter of China Coal Mining DWB Light Single Hydraulic Prop

Model/parameter	DWB22	DWB25	DWB28	DWB3.15
Max. Height(mm)	2240	2500	2800	3150
Working stroke (mm)	570/820	570/820	570/820	570/820
Fix resistance (kn)	30	30	30	30
Working pressure (MPA)	3.8	3.8	3.8	3.8
Setting load (KN)	30	30	30	30
Cylinder (Dia)	100	100	100	100

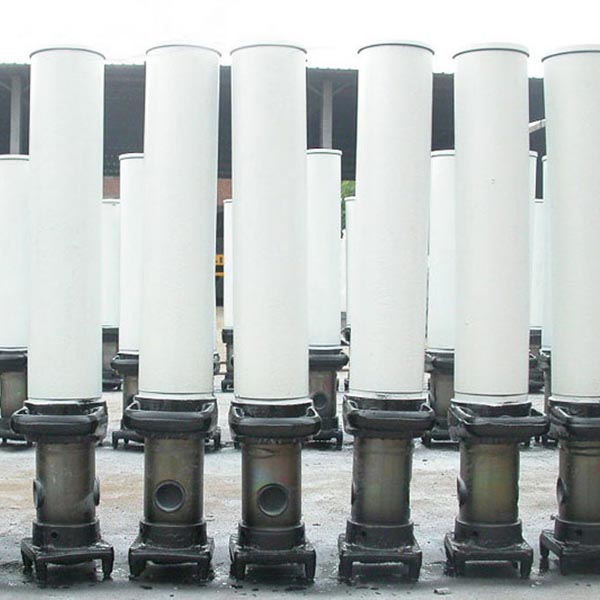

Photos of China Coal Mining DWB Light Single Hydraulic Prop
