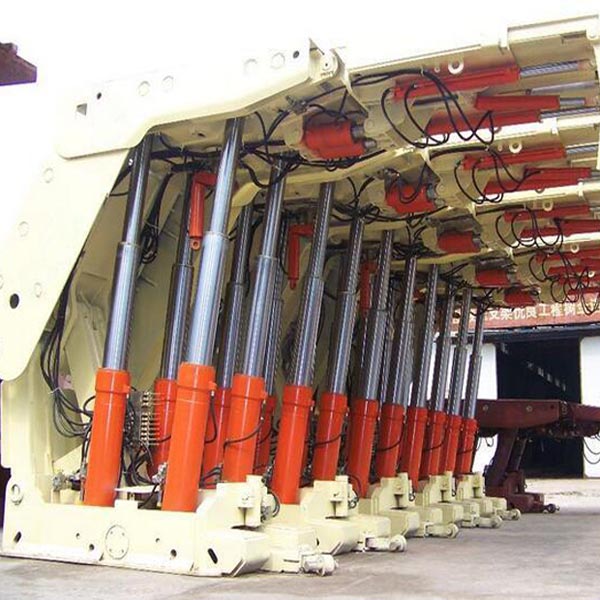

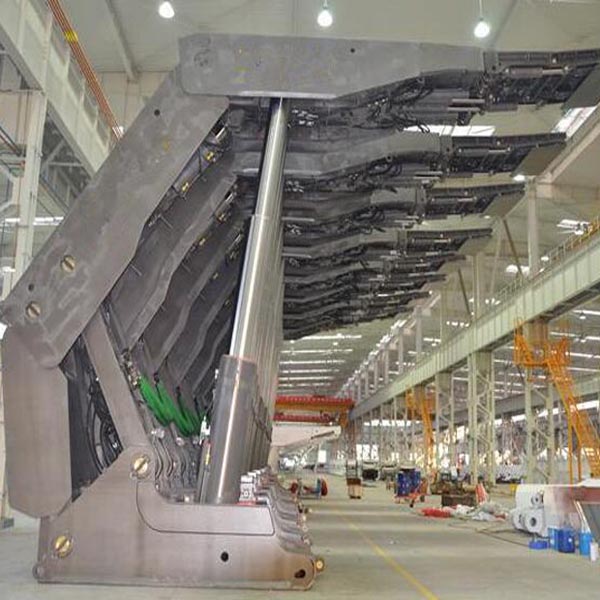

Introduction of ZY Series Shield Caving Hydraulic Roof Support System

ZY Series Shield Caving Hydraulic Roof Support System is developed on the basis of shield and chock-shield supports. It can be used in the different conditions such as medium stability roof, stability roof, broken roof, soft roof, etc. The hydraulic support is to support, both a bracket cover.
The ZY Series Shield Caving Hydraulic Roof Support System including 6 structural system, they are endpoint location, coal seam, roof beam, beam cover, base and backbone.

Parameter of ZY Series Shield Caving Hydraulic Roof Support System

Model	Support Height m	Working Resistance KN	Supporting Strength Mpa	Base Plate Pressure Mpa	Step Passage mm
ZY2800/13/28	1.3-2.8	2800	0.68-0.76	1.1-1.8	700
ZY3800/16/32	1.6-3.2	3800	0.65	1.4	700
ZY4000/13/28	1.3-2.8	4000	0.58-0.67	1.57-2.35	700
ZY5000/13/27	1.3-2.7	5000	0.77-0.85	0.9-1.8	700
ZY6700/20/40	2.0-4.0	6700	1.06-1.09	1.6-2.85	900
ZY9000/24/50	2.4-5.0	9000	1.08-1.1	1.6-2.8	900
