Introduction of Bilateral Railroad Turnout Track Switch

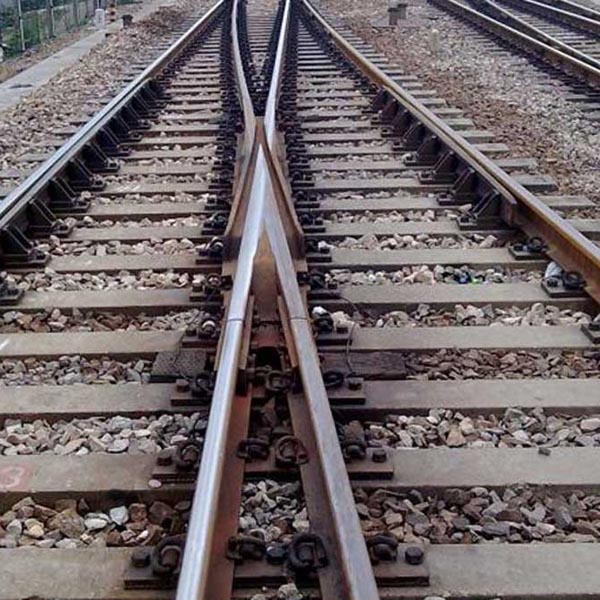

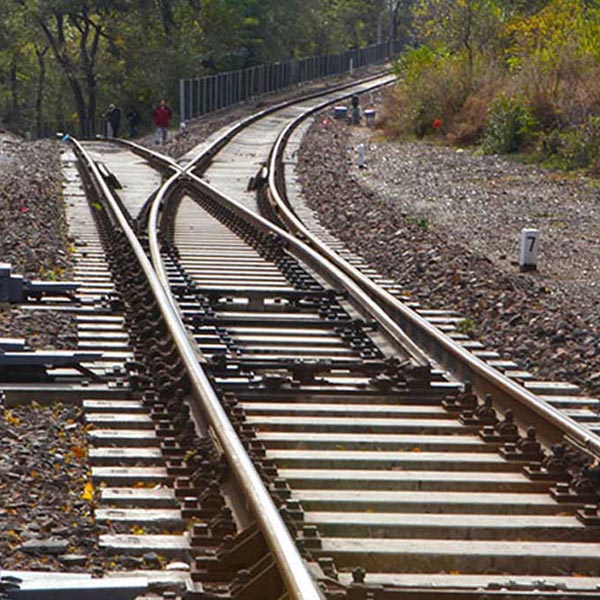

Bilateral Railroad Steel Rail Turnout Switch, which dovetail with the turnout to the sides of the two stocks Road bifurcation. Three-way turnout as V-shaped, while convergence of three tracks, mechanically operated by two sets of sharp turn rut track. Double Slip Switches like X-shaped, in fact, equivalent to four single turnout and a diamond-shaped cross combinations.

Parameter of Bilateral Railroad Turnout Track Switch

Number	Model	Gauge(mm)	Frog No.	Curve	Radius(m)	Total Weight(kg)
1	DK612-2-3	600	No.2	3	400	311
2	DK612-3-6		No.3	6	6100	515
3	DK612-4-12		No.3	12	6800	573
4	DK612-5-15		No.5	15	7400
5	DK615B-2-3		No.2	3	4000
6	DK615B-3-6		No.3	6	6100
7	DK615B-4-12		No.4	12	6800
8	DK615B-5-15		No.5	15	7400
