Introduction of Railway Supplies Fastener Steel Track Joint Fishplate

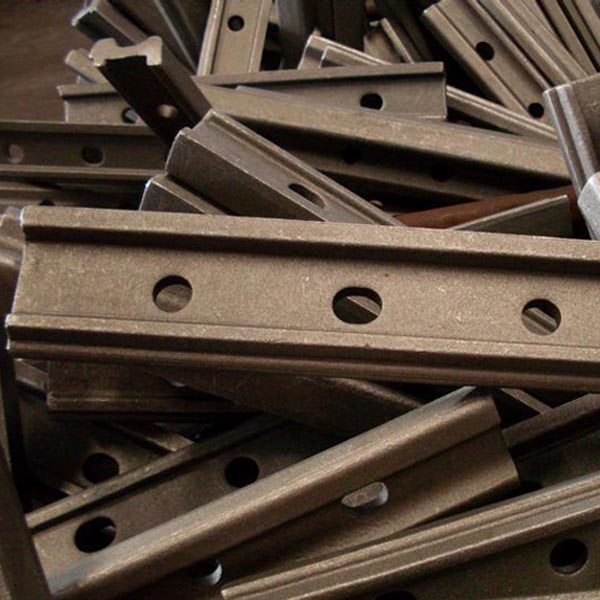

Railway fish plate/Railway Joint splint is used to joint/connect two pieces steel rails, such as light steel rail and heavy steel rail.
There are two kinds of fish plates, 4 holes and 6 holes. 4 holes fish plate is used to connect light steel rail,6 holes fish plate is used to connect heavy steel rail.

Parameter of Railway Supplies Fastener Steel Track Joint Fishplate

Specification	Materials	Standard of Products	Theory Weight (kg/set)	Length of Dimension (cm)	Packed in bundle with iron wire (set)
8kg	Q235B	GB11265-89	0.8 +0.8 =1.6		50
			1+1=2
12kg		GB11265-89	1.1+1.1=2.2	45.5	50
			2.6-3.0
15-18kg		GB11265-89	3.6-4.0	53.54	25
			4.6-5.0
			5.6-6.0
22-24kg		GB11265-89	6.6-7.0	61.73	20
			7.6-8.0
			8.4-9.0
30kg		GB11265-89	14.4-15.0	71.48	10
			16.4-17.0
43kg		GB185-63	57.0-58.0	79	1
