YTF-250 Rails Gap Regulating and Adjusting Apparatus for Railway Use

Introduction of YTF-250 Rails Gap Regulating and Adjusting Apparatus for Railway Use

Under normal circumstances, YTF-250 Rails Gap Regulating and Adjusting Apparatus can push a length of 12.5 m 43Kg / m rail 4-5 roots; 25 m 43Kg / m rail

Checks of YTF-250 Rails Gap Regulating and Adjusting Apparatus Before Using

a.whether the oil level in the tank reaches two-thirds of the tank height
b. return valve effect is reliable
c. pull wedge mechanism is flexible and reliable
d. loose parts of the connections are tight and leak

Using Steps of YTF-250 Rails Gap Regulating and Adjusting Apparatus

1 Push the rail joints rail joints to be adjusted
2 pull moving frame, so that the two clamps (wedges) falls on rails, so that the oblique iron rails folder in prison
3 Tighten the oil return valve clockwise, rocking lever, so that the high pressure oil input operating cylinder 4 When after each adjustment shall order first unscrew the oil return valve

Parameter of YTF-250 Rails Gap Regulating and Adjusting Apparatus for Railway Use

Model	YTF-250
rated thrust	250KN
Oil Cylinder Maximum Trip	145mm
operating oil pressure	43mpa
The maximum operating force controller	260N
Dimension	850*300*290mm
N.W	55kg

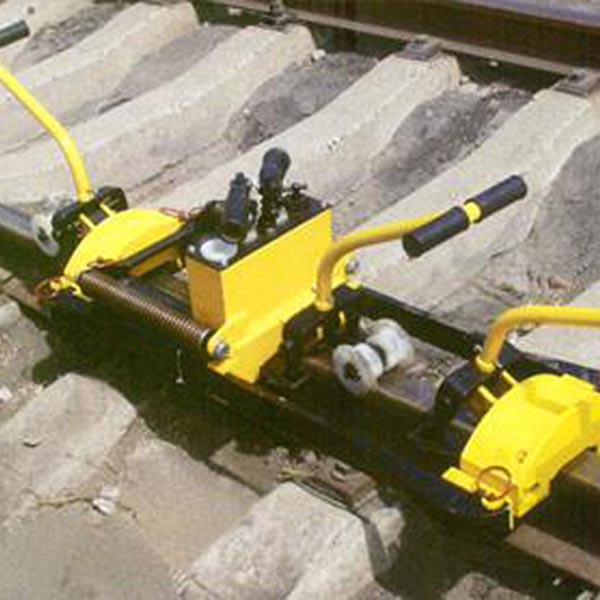

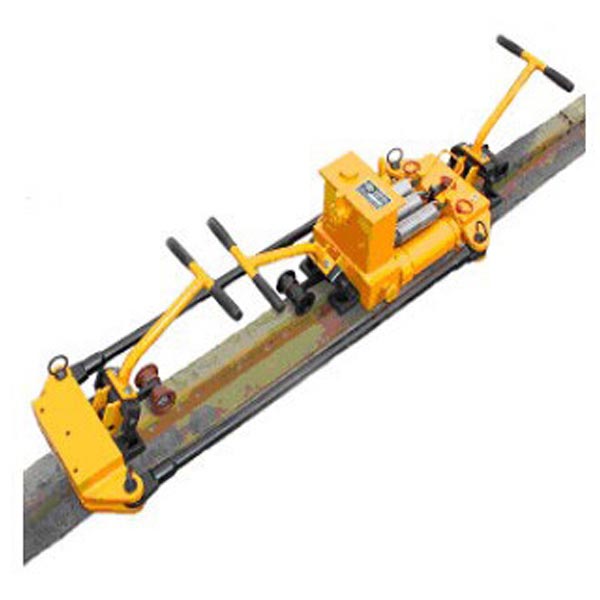

Photos of YTF-250 Rails Gap Regulating and Adjusting Apparatus for Railway Use
