YTF-400II Hydraulic Rail Gap Adjusting Machine

Introduction of YTF-400II Hydraulic Rail Gap Adjusting Machine

YTF-400II Hydraulic Rail Gap Adjusting Machine is to solve the problem of railway rail joint clearance (that is, rail gap) due to climate change and driving factors, such as its size change constantly. To make the rail gap back to the required size, must be string dynamic rail.

Features of YTF-400II Hydraulic Rail Gap Adjusting Machine

YTF-400II Hydraulic Rail Gap Adjusting Machine has push and pull small rail joint two functions, pushing rail, rail pulling all can, easy operation, high efficiency, with its anti "card dead" function, the use of safe

Parameter of YTF-400II Hydraulic Rail Gap Adjusting Machine

rated pulling force and trust	400kN
working stroke of cylinder piston	≥140mm
rated pressure	52MPa
empty load efficiency	≥2.0mm/time
handle operating moment	≤450N.m
total weight	≤125kg

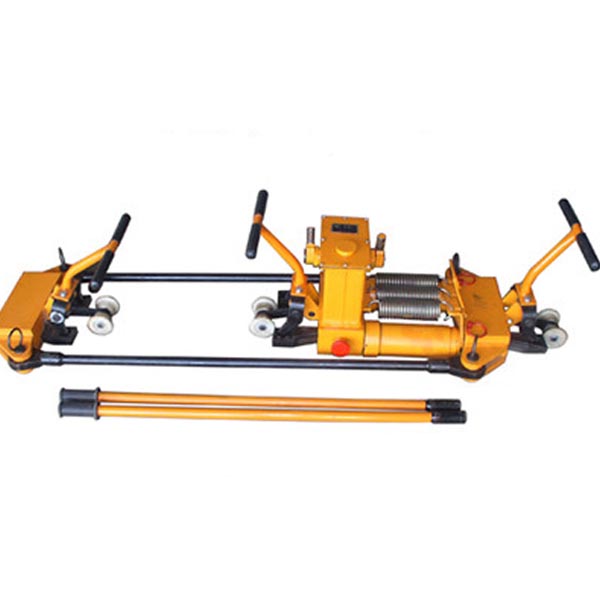

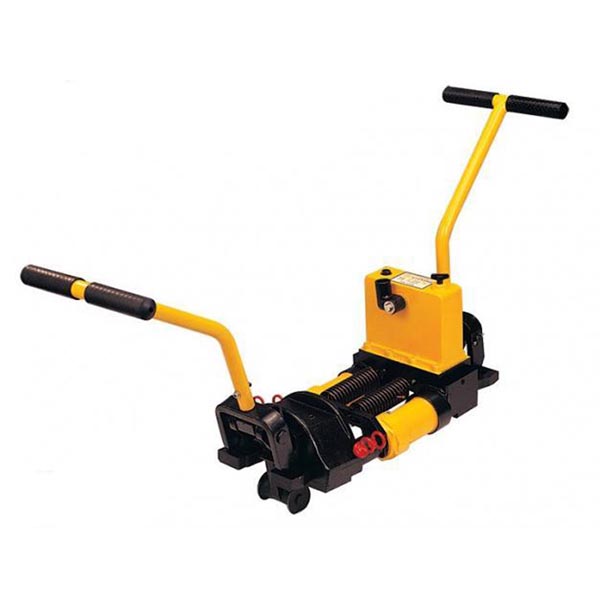

Photos of YTF-400II Hydraulic Rail Gap Adjusting Machine
