15T Mechanical Rails Lifting Track Jack

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of 15T Mechanical Rails Lifting Track Jack

15T Mechanical Rails Lifting Track Jack is the simplest & sturdiest types of the jacks and widely used in Oil Fields, Railway Track Work,Ship Yards, Mining Operation, Construction &Heavy Duty Industrial Maintenance & Establishments. These Track jacks can be used to lifting both on down and up strocks. They're not only be lowered tooth by tooth but also can be made to tripped off by just moving the trip control.The track jack has simple structure,use easily safe and reliable. It can be used with many same jacks.It is a good tool used widely in many lifting fields.

Parameter of 15T Mechanical Rails Lifting Track Jack

Model:

15t

Rated Force Of Track Lifting:

15t

Maximum Lifting Stroke:

 ≧280mm

Rock back and forth distance:

 16mm

Original height of the claw:

 50mm

Crowbar length:

1.5m

Full loading lifting force:

1700N

Full loading quick down force:

500N

Closed height:

 530mm

Weight:

 25kg

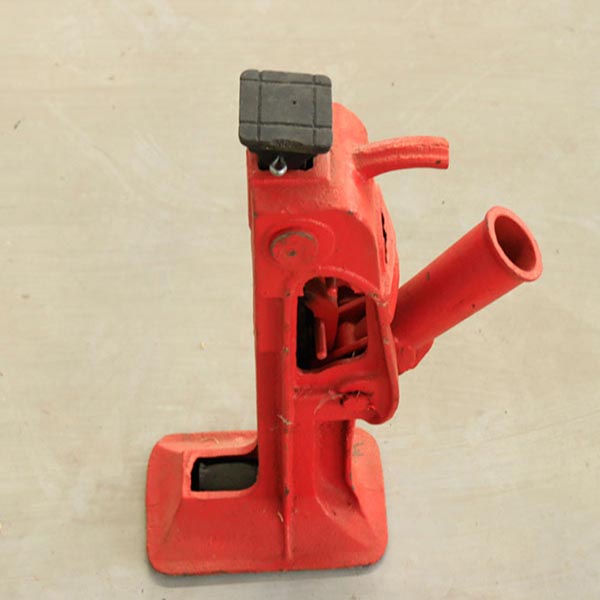

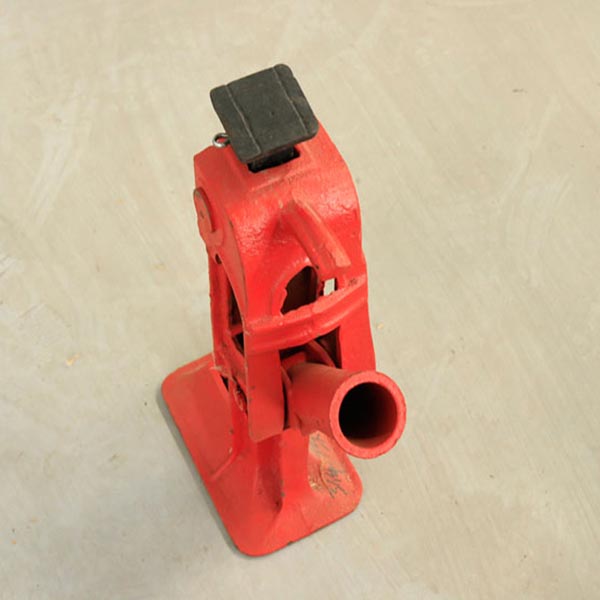

Photos of 15T Mechanical Rails Lifting Track Jack
