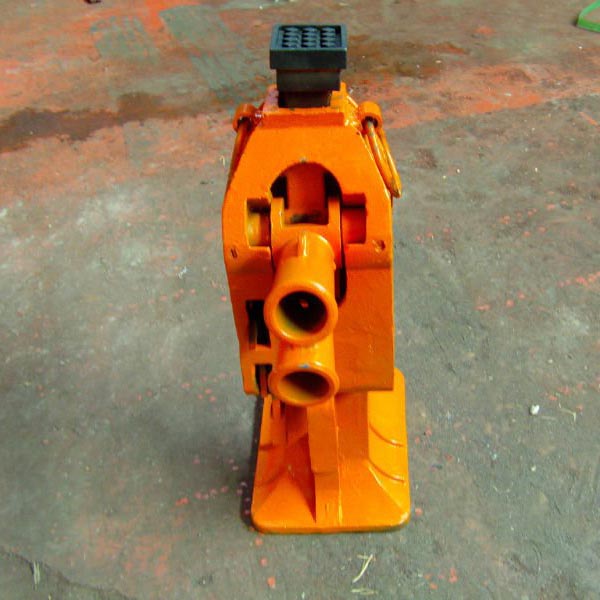

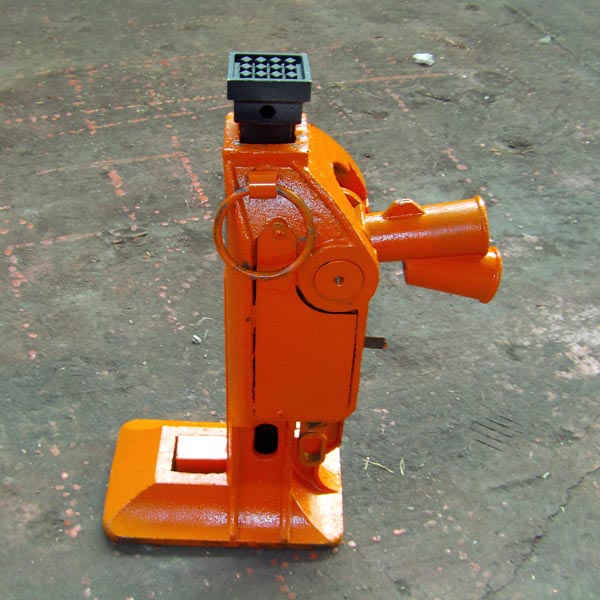

Introduction of 5T/10T/15T Railway Rail Track Jacks

Rail Jack 5T/10T/15T Railway Rail Track Jack is safely employed in railway relaying, maintenance, cargo loading-unloading, machinery & bridge installation and hoisting operations.
Rail Jack 5T/10T/15T Railway Rail Track Jacks have two way to bring it down under load. One is teeth by teeth the other way all of sudden.

Parameter of 5T/10T/15T Railway Rail Track Jacks

Type	QD5	QD10	QD15
max. lifting capacity of the top	5T	10T	15T
max. lifting capacity of the hook	2.5T	5T	7.5T
max. lifting stroke	160mm	180mm	280mm
top height	345mm	410mm	580mm
hook height	43mm	45mm	60mm
