35 Ton Hydraulic Steel Hole Puncher

Introduction of 35 Ton Hydraulic Steel Hole Puncher

35 Ton Hydraulic Steel Hole Puncher is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Parameter of 35 Ton Hydraulic Steel Hole Puncher

Application	Punch Round Holes on Cu/Al Busbar
Punching Capacity	Dia. 10.5mm-Dia. 20.5mm
Busbar Thickness	Below or equivalent to 12mm
Output	35T
Throat Depth	110mm
Weight	28kg
Size	370*240*150mm
Package	Wooden/Steel Case

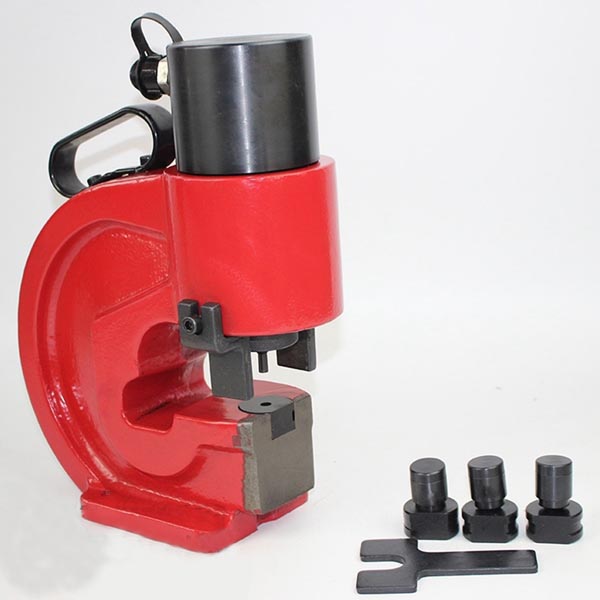

Photos of 35 Ton Hydraulic Steel Hole Puncher

Comment of 35 Ton Hydraulic Steel Hole Puncher
