YQB-200×135 Hydraulic Track Lifting and Lining Machine

Introduction of YQB-200×135 Hydraulic Track Lifting and Lining Machine

The YQB-200×135 Hydraulic Track Lifting and Lining Machine is mainly composed of hydraulic transmission parts and leverage.
Main structure features: this YQB-200×135 Hydraulic Track Lifting and Lining Machine adopts manual operation, do not need other power consumption, mainly by manual lever to hydraulic drive the machine upper hooks for lifting movement, which has played a role, reasonable structure, easy to carry, is a practical machine.

Applications of YQB-200×135 Hydraulic Track Lifting and Lining Machine

YQB-200×135 Hydraulic Track Lifting and Lining Machine up dial the way this unit is suitable for various models of rail line to track and dial the way homework, it has the advantages of novel structure, convenient operation, safe and reliable, and not intrusion clearance, working efficiency high, the weight of the characteristics of light. Also suitable for switch a dial the way homework, is railway works departments maintenance line necessary tools.

Parameter of YQB-200×135 Hydraulic Track Lifting and Lining Machine

1. rated lifting force	200KN
2. rated lining force	135KN
3. max lifting quantity	120mm
4. max lining quantity	80mm
5. hydraulic system pressure	55MPa
6. weight	21.8kg

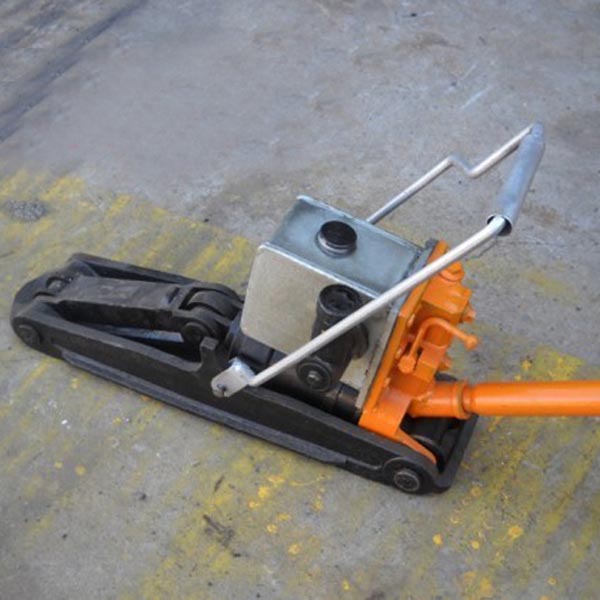

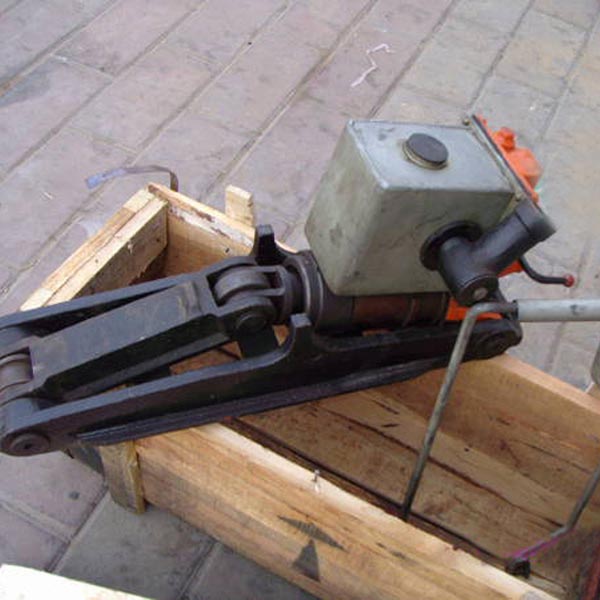

Photos of YQB-200×135 Hydraulic Track Lifting and Lining Machine
