KDJ High Speed Electric Handheld Railway Rail Saw

Introduction of KDJ High Speed Electric Handheld Railway Rail Saw

KDJ High Speed Electric Handheld Railway Rail Saw is used in coal mines, ports, mining and other rail of 50 kg/m and below the sawing operation.Electric rail sawing machine is high efficiency, simple operation, reduce labor intensity of electric rail sawing machine, etc.
Grinding wheel spindle displacement Angle is big, electric rail sawing machine utilization rate above 90%, the clamping is convenient, fast cutting, saw cut no burn phenomenon. Using gasoline engine as power source, is suitable for the power of the environment, to push on the ground and rails.

Parameter of KDJ High Speed Electric Handheld Railway Rail Saw

(1) Motor power	3.0kw(4.0)Voltage380V
spindle speed	3000r/min
(2) The sawing grinding wheel piece	Φ400×Φ25×4
(3) Cutting range	24—43—75 kg/m
(4) Cut verticality	less than0.5mm
(5) Utilization rate of grinding wheel piece	43rail use 6—7 times  50rail use5—6times  75rail use4—5times
(6) Size	680×430×580
(7) Total weight	65kg(3.0) 75kg(4.0)

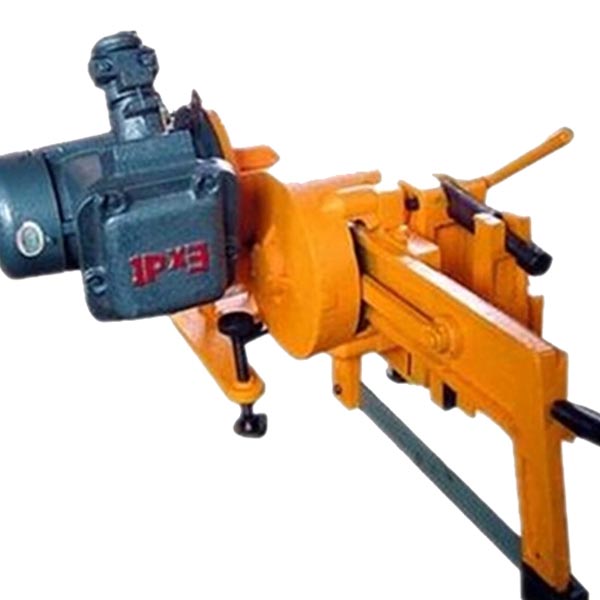

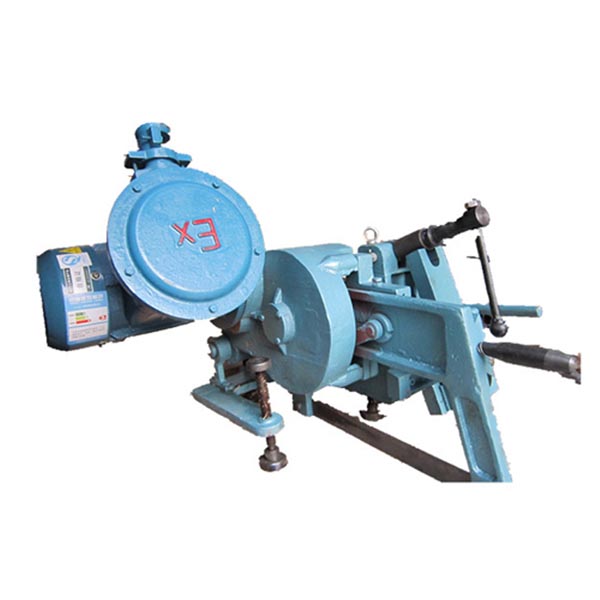

Photos of KDJ High Speed Electric Handheld Railway Rail Saw
