Introduction of K1260 Portable Abrasive Rail Saw

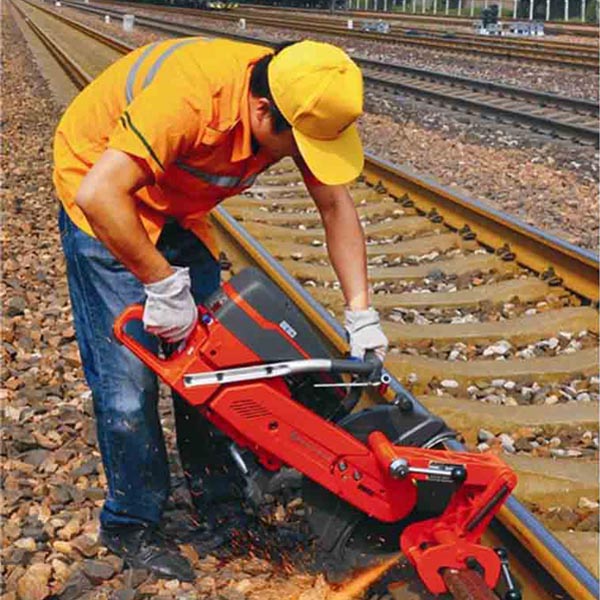

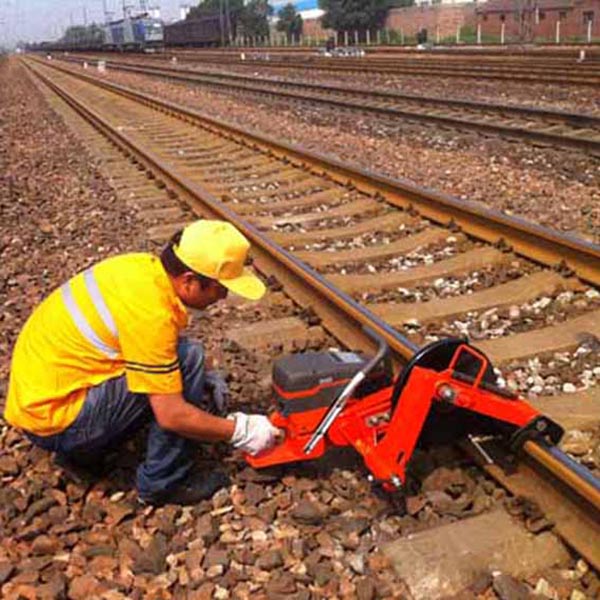

K1260 Portable Abrasive Rail Saw is a portable cutting machine to maintenance machinery .For the import of small gasoline engine as power, the pulley will power transfer to sand wheel, drive cutting grinding wheel rotation, to realize the purpose of cutting rail. Host and rail clamping device can be decomposed easy to carry, has small volume, light weight, cutting speed, cutting section rail high accuracy, reliable, convenient rail clamping operation, etc.
ISO9001:2000 Quality system authentication unit.

Parameter of K1260 Portable Abrasive Rail Saw

1. The gasoline engine forms	single cylinder air cooling two stroke
2. The gasoline engine power	5.8 kw
3. The grinding wheel piece form	double strengthen silk screen
4. The maximum linear speed	100 m/s
5. Rated speed	5100 + 100 r/min
6. Grinding wheel piece size	Φ355mmX25.4mm,
7. Cutting precision
a.Incision and rail longitudinal vertical deviation	≤0.40 mm
b.Two-way cutting interface plane deviation	≤0.35 mm
8. Cutting time	≤120 s
9.clamp weight	5Kg
10. weight	20.5 kg
11. The fuel tank capacity	1.25 L
