GB QB Standard Light Steel Rails 55Q Q235B for Mine Use

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of GB QB Standard Light Steel Rails 55Q Q235B for Mine Use

Standard:GB11264-89
Material:Q235,Q235B,50Q,55Q
Weight:4kg/m, 8kg/m, 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m.
Length:6m,8m,9m,10m,12m,etc
GB QB Standard Light Steel Rails 55Q Q235B for Mine Use,  with the features of high level purity, precise chemical composition control, high dimensional accuracy and excellent surface quality,the products are mainly used in railway, tunnel, crane,etc.
Main standards: Q/YY001-2008,Q/YYG002-2008,
        GB2585-81,GB11264-89,GB2585-2007,
        YB222-63,YB/T5055-93,TB/T2344-93,TB/T2635-2004,
Main grades: Q235,Q235B,50Q,55Q
      45Mn,50Mn,U71Mn,U71,U75V,U75VM,PG4
      BS700,BS900A,UIC900A,UIC1100,
      EN grades, AREMA grades

Parameter of GB QB Standard Light Steel Rails 55Q Q235B for Mine Use

 The list of China Coal Light Steel Rails

Name of Commodity

Specification

Materials  (Steel Grade)

Standard of Products

Theory Weight (kgs/M)

Length of Dimension    (M)

Packed In Bundle With Iron Wire (pcs/bundle)

Light Rail

4kgs/m

Q235

Q/YYG001-2008

4kgs/m

6,8,9,10

75

8kgs/m

Q235

Q/YYG001-2008

8.42kgs/m

55

12kgs/m

Q235

GB11264-89

12.2kgs/m

36

15kgs/m

Q235/55Q/50Q

GB11264-89

15.2kgs/m

28

18kgs/m

Q235/55Q/50Q

YB222-63

18.06kgs/m

21

22kgs/m

Q235/55Q/50Q

GB11264-89

22.3kgs/m

21

24kgs/m

Q235/55Q/50Q

Q/YYG001-2008

24.46kgs/m

21

30kgs/m

Q235/55Q/50Q

GB11264-89

30.1kgs/m

15

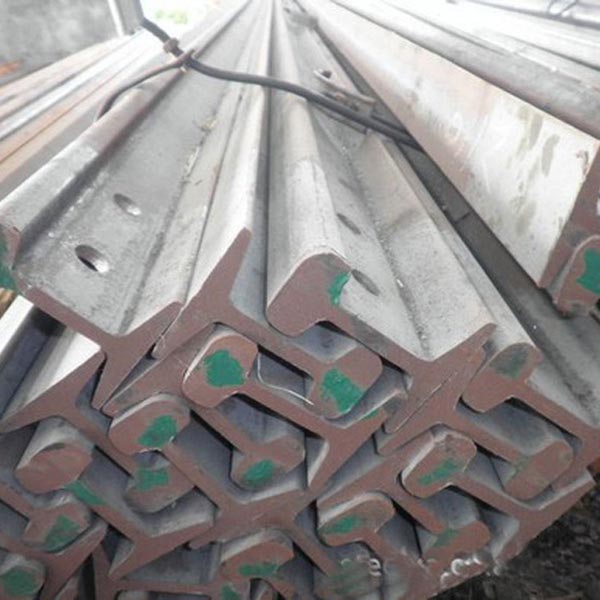

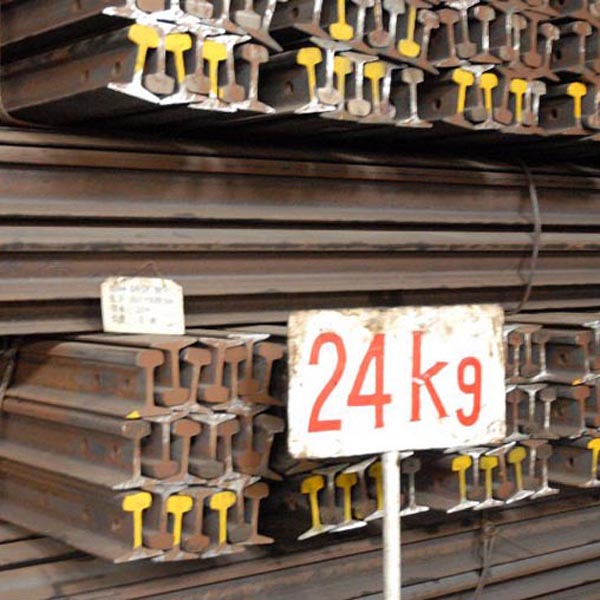

Photos of GB QB Standard Light Steel Rails 55Q Q235B for Mine Use
