Introduction of MG100/111-TD Thin Seam A.C Electric Continuous Mining Machine

The MG100/111-TD Thin Seam A.C Electric Continuous Mining Machine is the frequency conversion velocity modulation electricity which researches and develops on the basis of MG100-T shearer.
The 1.MG100/111-TD Thin Seam A.C Electric Continuous Mining Machine mainly consist of cutting and hauling two major parts . The motor capacity of cutting part is 100KW, and in hauling part is 11KW. The total installed capacity is 111KW. In hauling part the motor be transverse arranged, the electrical machinery controlling system has introduced the SPWM frequency conversion velocity modulation technology, enabled shearer to be allowed to act according to the anthrax degree of hardness, the movement resistance to adjust the speed automatically,so that to realized the best operation effect, to adapt the requirement of the working face, easy to control and  operation, realized the hauling with stepless speed regulation, to get the stronger towing power

Parameter of MG100/111-TD Thin Seam A.C Electric Continuous Mining Machine

Mining height scope

0.75-1.5m

Cutting depth

0.8m, 1m

Suitable coal bed hardness

f<=2.5

Productivity

100-200 t/h

Roller rotation speed

82r/min

Roll drum diameter

Φ750mm, Φ850mm, Φ1000mm

Working voltage

660V

Maximum working towing force

120KN

Rated working towing force

90KN

Towing speed

0-3.6m/min

Haulage chain specification

Φ18mm×64mm

Rocking shaft pivot angle

Raise 45°, Decline 16°

Outline size

5780mm×1883mm(Cutting depth 800mm)×580mm(length×width×height)

Machine weight

 about 7t

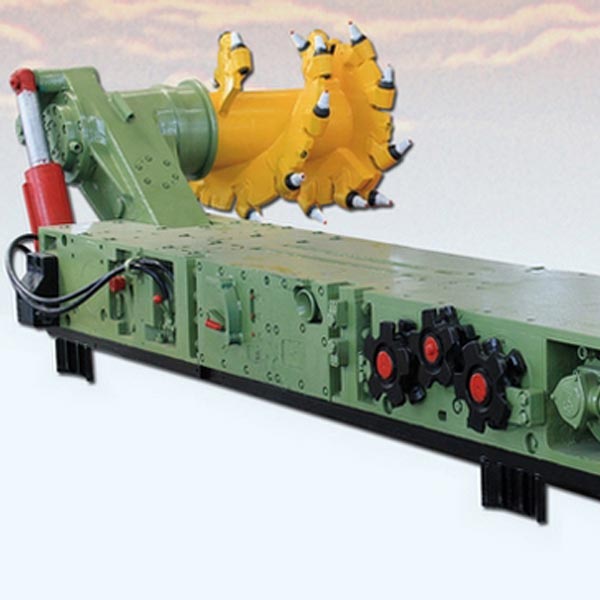

Photos of MG100/111-TD Thin Seam A.C Electric Continuous Mining Machine
