Single-side Curved Rail Dumping Mine Ore Carts

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of Single-side Curved Rail Dumping Mine Ore Carts

Single-side Curved Rail Dumping Mine Ore Carts, with the advantages of high Stress area welds eliminated, mass and section thickness optimized, simplified state of the art mainframe and easy to operate, and easy replacement of wear and spare parts, is suitable for tunnel coal transportation.

Parameter of Single-side Curved Rail Dumping Mine Ore Carts

Parameters


unit





key parameter



Model



1.2M3 double Side type(N)

1.6M3

hydraulic pressure

2.5M3

Hydraulic pressure

4M3

Hydraulic pressure

6M3

Hydraulic pressure

8M3

Hydraulic pressure

volume


M3

1.2

1.6

2.5

4

6

8

load


T

3

4

6.25

10

15

20

track gauge


mm

600

762

762/900

762/900

762/900

762/900

wheel base


mm

620

800

120

2000

2000

2600

wheel diameter


mm

300

350

400

350

350

350

Binder shape


Bolt link

Bolt link

Bolt link

Bolt link

Bolt link

Bolt link

Traction high


mm

335

320

320

430

430

430

Uninstall Angle


(.)


45

45

42

42

42

overall dimension

long

mm

2150

2500

3650

3650

4850

6350


wide

mm

1450

1200

1250

1500

1500

1500


high

mm

1270

1300

1300

1586

1586

1634

self weight



1000

1663

2505

3850

4900

6300

Traction speed


km/h

12

12

12

8

8

8

turn radius


m

8

10

12

15

15

18

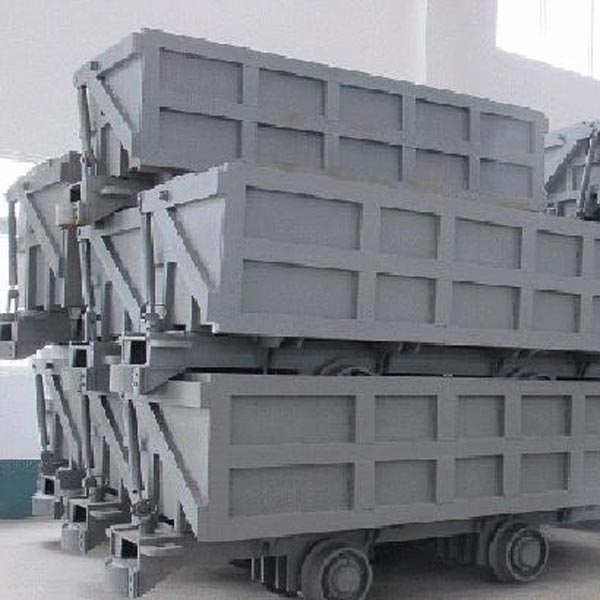

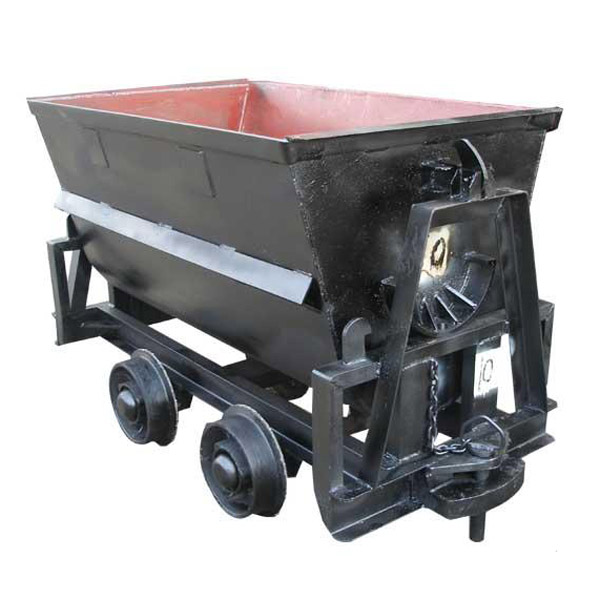

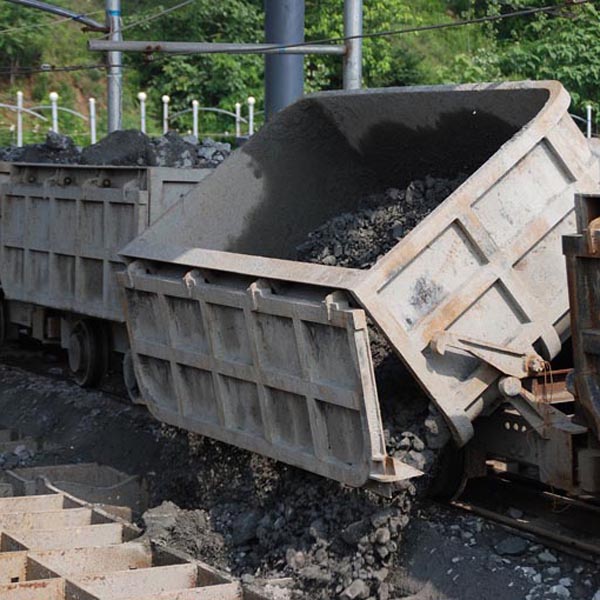

Photos of Single-side Curved Rail Dumping Mine Ore Carts
