China Coal KC Series Underground Side Dump Mine Wagon

  • Introduction
  • Main Parameter
  • Photos
  • Comment

Introduction of China Coal KC Series Underground Side Dump Mine Wagon

China Coal KC Series Underground Side Dump Mine Wagon, with the characteristics of high reliability, long service time, low cost and easy operation, made by high quality steel, high stress area welds eliminated, mass and section thickness optimized, fast delivery, easy replacement of wear and spare parts, be widely used in various mining construction.

Parameter of China Coal KC Series Underground Side Dump Mine Wagon

Model

Volume

(m³)

Load

(T)

Gauge

(mm)

Wheel Base

(mm)

Wheel Diameter (mm)

Traction

(KN)

Traction Height

(mm)

Overall Size

(LxWxH)

KC1.2-6

1.2

3

600

600

300

60

320

2100*1050*1200

KC1.6-6A

1.6

4

600

800

350

60

360

2500*1200*1300

KC2-6A

2

5

600

1000

400

60

385

3000*1250*1300

KC2.5-6A

2.5

6.25

600

1100

400

60

385

3500*1250*1300

KC3-6

3


600

1400

350

60

420

3600*1350*1335

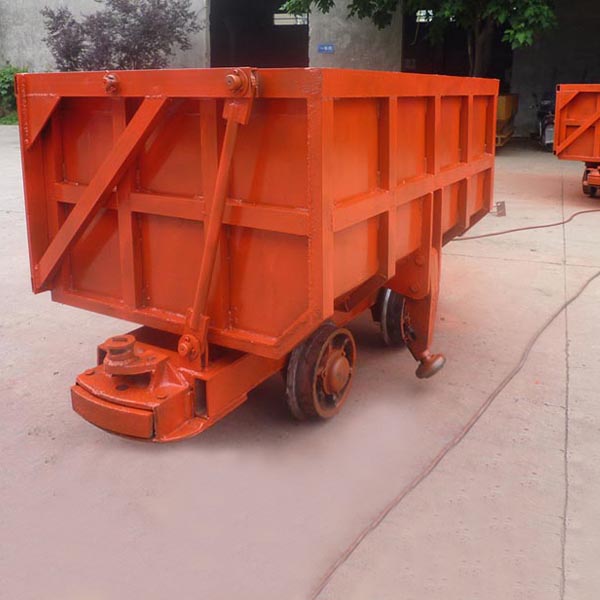

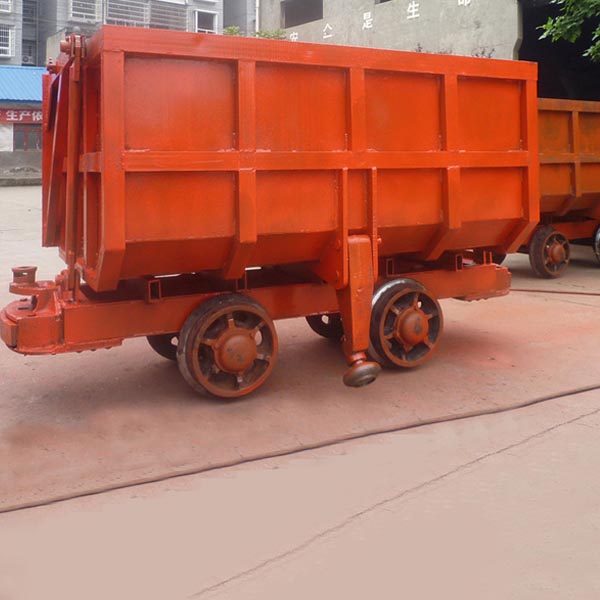

Photos of China Coal KC Series Underground Side Dump Mine Wagon
