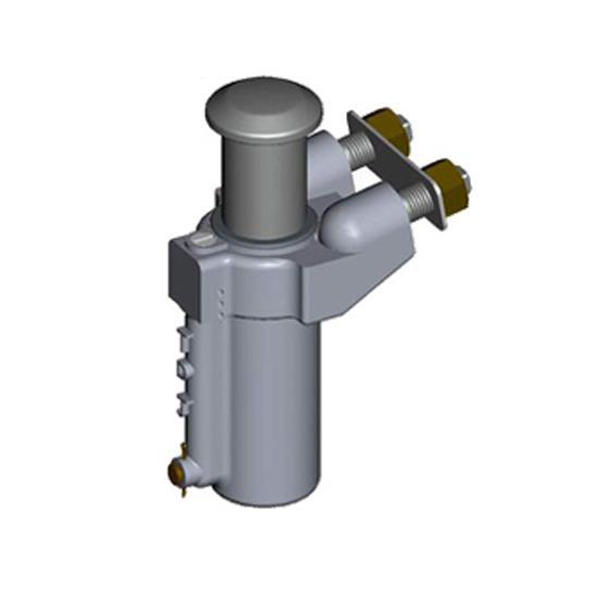

TDR2017 Track Dowty Retarder

Introduction of TDR2017 Track Dowty Retarder

The design of the TDR2017 dowty retarder is based on the performance parameters in accordance with the TB / T2460-93 standard, and the main design is to facilitate installation and maintenance.

Parameter of TDR2017 Track Dowty Retarder

1. Working conditions:

Temperature(℃):-50-+50

Rails Adaptable:43kg/m, 50kg/m, 60kg/m

2. Speed(km/h): 4.5±0.36

3. Braking force(J):≥970

4. Work of resistance (J): ≤braking forcex5%

5. Vertical reaction(KN):18.5_-1.5

6. Oil injection(ml): 400_-5

7. Medium oil:10# aircraft hydraulic oil

8. Nitrogen filling pressure (mpa): 0.9

9. Return time (s):<5

10. Installation angle:13°

11. Installation height(mm): 50

12. Structure installation (km/h):≤25

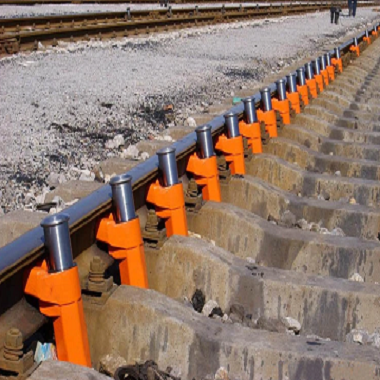

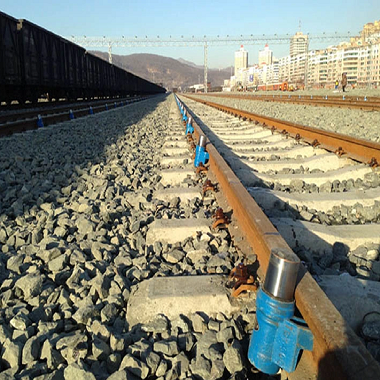

Photos of TDR2017 Track Dowty Retarder
