Hydraulic Rescue Telescopic Ram

Introduction of Hydraulic Rescue Telescopic Ram

Hydraulic rescue telescopic ram uses with electric pump or hand pump, hold the top function can be realized. In the event of fire or earthquake, it is used to protect rescuers and victims within dangerous buildings by propping or fixing dangerous objects before entry for rescue operations. In the case of traffic accident, it can be used to hold up or put up different parts of the involved vehicle as necessary. Two different models of this series can be used in relay to open a passage for rescue screw to come to the rescue of standard victims or endangered objects. It is an indispensable tool to fire brigades, traffic departments, industrial and mining organizations and other facilities.

Features of Hydraulic Rescue Telescopic Ram

1. Cylinder made of high strength lightweight alloy;
2. Both ends of the skid gear guarantees will not slip under stress;
3. Hold the top time-consuming short, to accelerate the rescue process;
4. Auxiliary equipment: ram carriage.

Parameter of Hydraulic Rescue Telescopic Ram

Working pressure	63Mpa(630.000bar)
Max. Extending force	110KN(11ton)
Closed Length	≤350mm
Extending stroke	180mm
Extension rod length I/II/III	100/175/275mm
Working range	350-1080mm
Weight	≤10kg
Size(LXWXH)	350X260X90mm

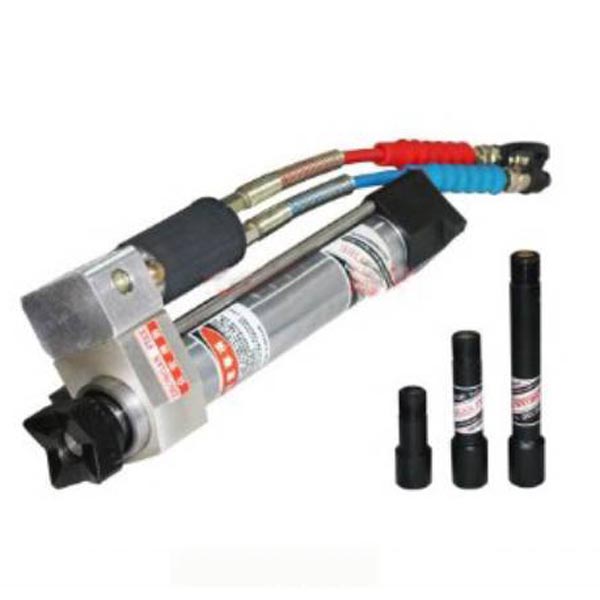

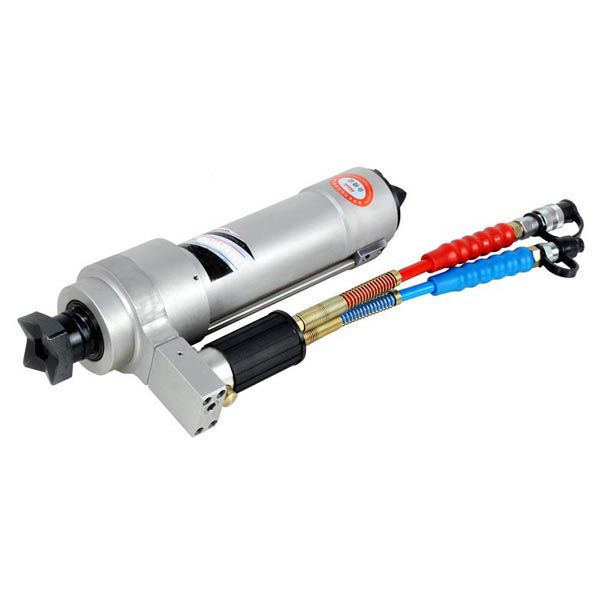

Photos of Hydraulic Rescue Telescopic Ram
