PS30-50 Fixed Firefighting Water Monitor

Introduction of PS30-50 Fixed Firefighting Water Monitor

PS30-50 fixed firefighting water monitor consists of base, shell, nozzle, gun barrel, horizontal rotary bodies etc, fire water monitor can be used for horizontal rotation, pitching rotation, and can achieve reliable positioning locked, which helps the firefighters evacuated from the fire and protect the personal safety of firefighters. Fire monitor has straight/flowering two injections function, when the water inject straight can put out long distance fires; when the water flowering inject can be used to cool the cooling fire, firefighting. Because of the fire monitor fully functional, stable performance 3, novel structure, easy to operate, firefighting water monitor is widely used, which equipped heavy duty firefighting truck and ships, also can be used as fire extinguishing equipment, industry and mining enterprises, warehouse, oil tank.

Features of PS30-50 Fixed Firefighting Water Monitor

b. Stable performance, flexible operation and easy to maintenance.
c. Low inlet pressure
d. Large flow and range far
e. Light weight and small volume.
f. It can spray in close distance, remote monitoring.
g. It can spray water column and water mist use different gun head.

Parameter of PS30-50 Fixed Firefighting Water Monitor

Model	Flow (L/s)	Water jetting range (m)	Working pressure (Mpa)	Max. Angle of elevation (Degree)	Mini. Angle of Depression (Degree)	Horizontal Angle (Degree)	Weight (kg)	Flange Connection (mm)
	20	≥48	0.8～1.0	60	-40	0-360	≤35	DN80
	25	≥50
PS30	30	≥55
PS40	40	≥60
PS50	50	≥65
	60	≥70	0.9～1.2	60	-40		≤45	DN100
	70	≥75
	80	≥80
Note:Flange connection can customized by the user’s special requirement.

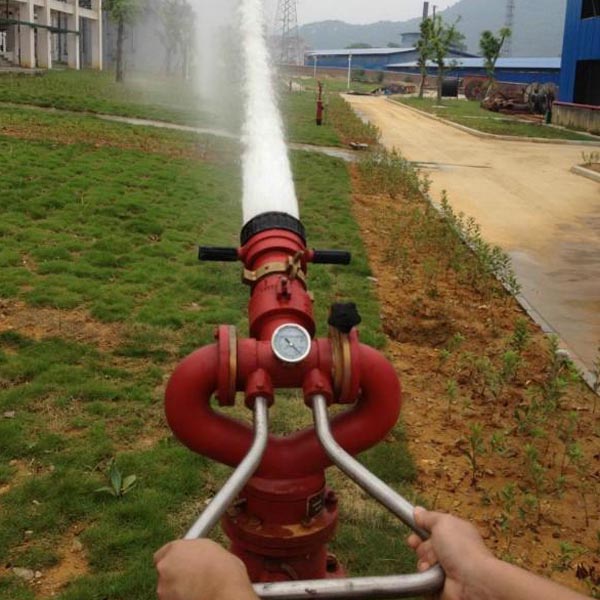

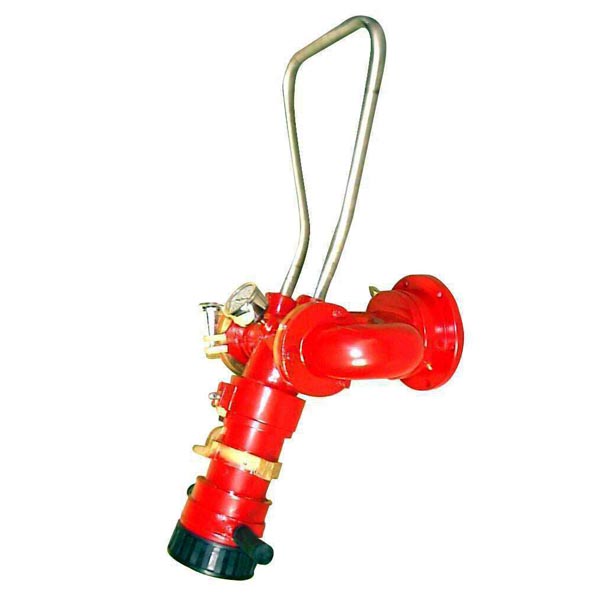

Photos of PS30-50 Fixed Firefighting Water Monitor
