Plain Surface Cast Iron 5.6 Grade Rail Shoulder

Introduction of Plain Surface Cast Iron 5.6 Grade Rail Shoulder

Plain Surface Cast Iron 5.6 Grade Rail Shoulders are cast in the concrete ties for fixation of Elastic Rail Clips. Our Iron Shoulders are manufactured from pearlitic malleable iron (M. C. I. Inserts) and spheroid graphite iron (S. G. C. I. Inserts). We offer two types of Iron Shoulders: Single Stem Iron Shoulders mostly used in pre-stressed concrete ties, and Twin Stem Iron Shoulders commonly used in Bi-Block or Twin Block concrete ties.
The shoulder accessories are supplied for specific rail sections with design criteria which ensure that the correct elastic clip toe loading is achieved. Certain shoulders are supplied with milled weld area faces to assist in achieving the necessary weld integrity.

Parameter of Plain Surface Cast Iron 5.6 Grade Rail Shoulder

Name	Plain Oiled / Black Treated Cast Iron Shoulder
Type	For rail UIC54, UIC60, 115RE,50kg rail, 60kg rail,BS80lbs, BS100lbs
	Or the type by customers’ drawings
Material	QT500-7 (GGG50)	QT450-10(GGG45)	QT400-15(GGG40)
Chemical composition(%)	C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025	C:3.40-3.90, Mn:0.2-0.5, Si:2.70-3.00, ,P:≤0.07, S:≤0.03	C:3.5-3.60, Mn: ≤0.5, Si:3.00-3.20 ,P:≤0.07, S:≤0.02
Surface	plain (oiled)

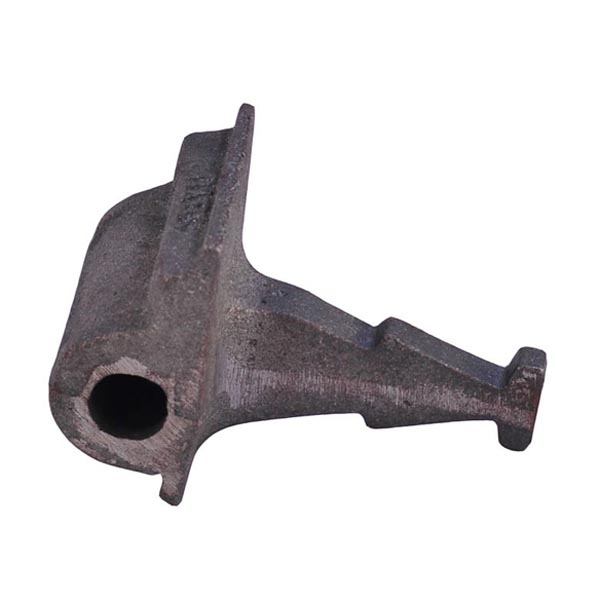

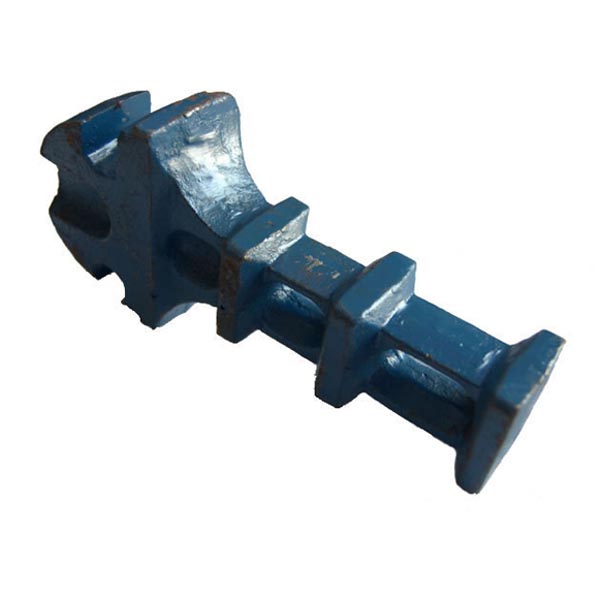

Photos of Plain Surface Cast Iron 5.6 Grade Rail Shoulder
