ZG-13 Track Construction Electric Rail Drills

Introduction of ZG-13 Track Construction Electric Rail Drills

ZG-13 Track Construction/Electric Rail Drills can be used for less than 75Kg/m all type of the rail tracks,the rail clamp device has the self-locking function, high position accuracy, high drilling precision. It uses the twist drill bits, the overall structure is compact small size, light weight, simple and reasonable structure, electric rail track drilling  machine is the essential tools for railway maintenance department.

Parameter of ZG-13 Track Construction Electric Rail Drills

Model	ZG-13
Motor Model	JIZSD05-13A
Electric voltage	220V
Power	420W
max drilling diameter	13mm
spindle speed	550r/min
drilling time	50s
drilling type	Impact drill
overall dimension	730*190*290mm
machine weight	16Kg
suitable steel rail	Less than 75kg/m

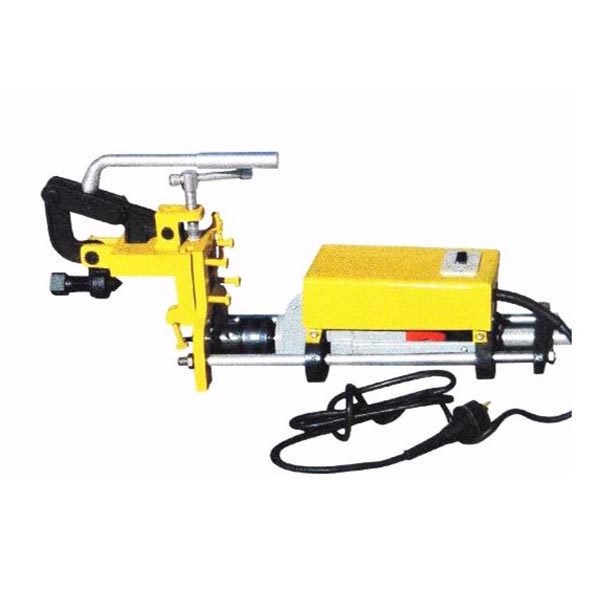

Photos of ZG-13 Track Construction Electric Rail Drills
