FMG-4.4 Internal Combustion Railway Rails Grinder

Introduction of FMG-4.4 Internal Combustion Railway Rails Grinder

FMG-4.4 internal combustion rails grinding machine is a special tool for polishing welded joint, surface damage and side trimming of the rails.
FMG-4.4 Internal Combustion Railway Rails Grinder Feature
1.Gasoline driven, strong adaptability to an open working environment.
2.Compact structure, light weight, convenient station conversion.
3.Partial grinding operation of railway rail conveniently and swiftly.

Parameter of FMG-4.4 Internal Combustion Railway Rails Grinder

Model	FMG-4.4
Engine type:	Petrol engine
Power:	5.2kW
Max. Rotate speed	4000r/min
Size of grinding wheel:	F150 mm×F55 mm×70 mm
Grinding wheel stroke:	50 mm.
Grinding wheel angle	0-90°
Machine weight:	60kg.
Overall dimension:	1500x6300x760 mm

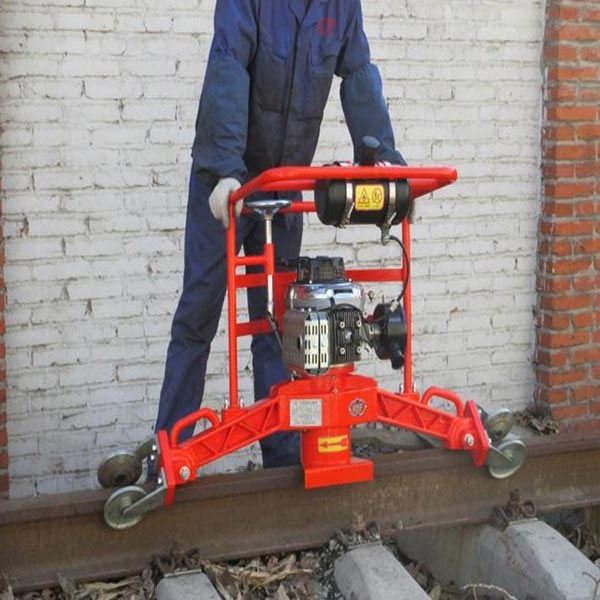

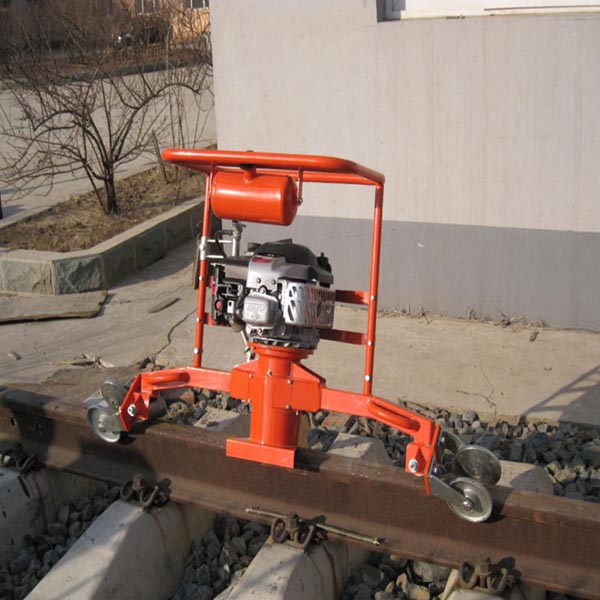

Photos of FMG-4.4 Internal Combustion Railway Rails Grinder
