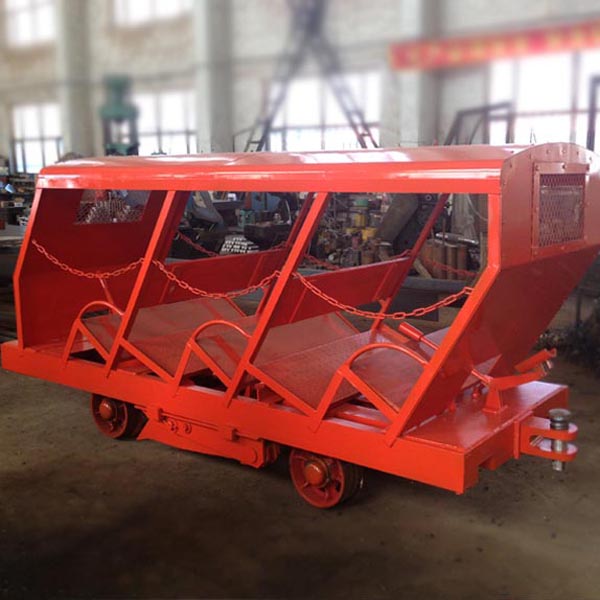

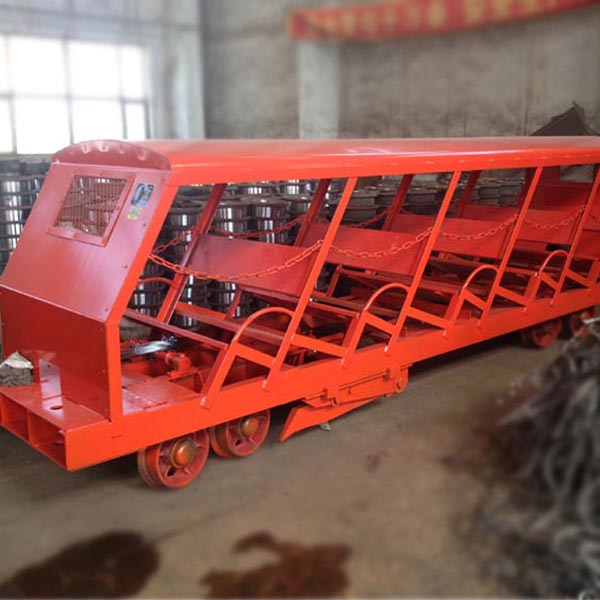

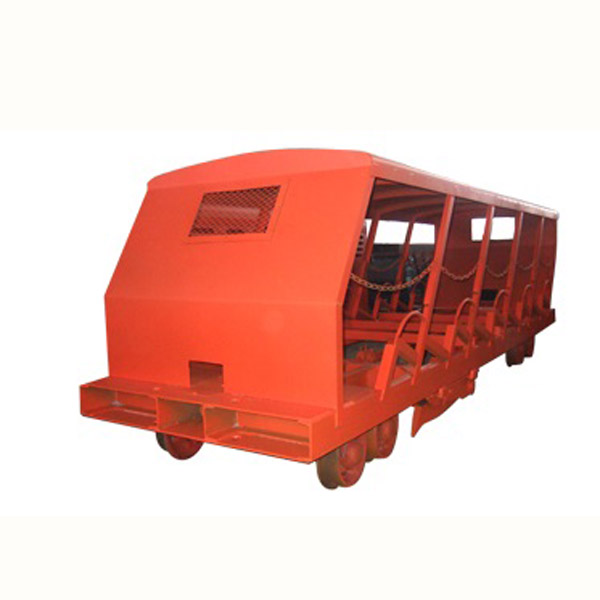

Introduction of New Type XRC Series Slope Passenger Wagon for Mine

XRC Series Slope Passenger Wagon for Mine is the safety personnel transportation equipment of all kinds of mining slope roadway, which is suitable for the slope roadway that gradient is less than 30. The slope man car is driven by electric winch, which are fast, safe and convenient. The number of the person on man car depends on the angle of mine. In order to ensure the safety of the personnel, the man car is equipped with brake device that can safety brake when it comes to wire rope fracture or obstructions.

Parameter of New Type XRC Series Slope Passenger Wagon for Mine

Model: XRC10-6/6,XRC8-6/6,XRC15-6/6
model significance:
TakeXRC10-6/6For Example:
X——slope roadway
R——man car
C——XRC
10——seating capacity
6——gauge

6——traction

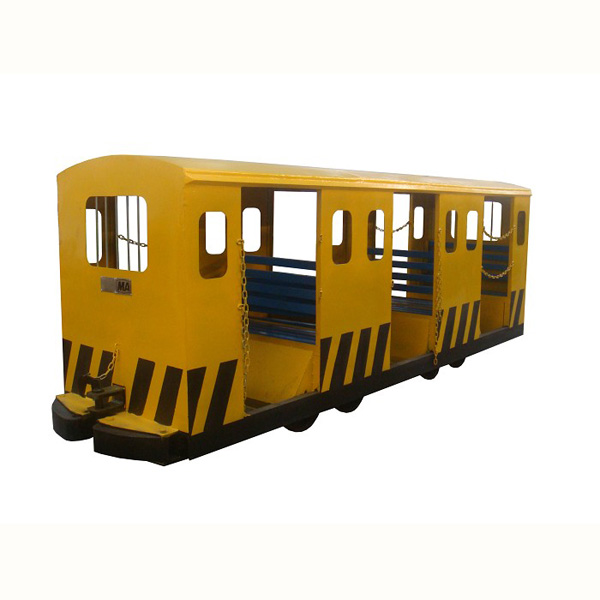

Item	Unit	Slope man dolly car		Level laneway
Item	Unit	XRC10-6/6	XRC15-6/6	PR12-6/3
Max.traction force	KN	60	60	30
Max.running speed	M/s	4	4	3
Tilt angle	degree	6-30	6-30
Min.turning radius	m	12	12	9
	degree	10	10
Orbit	Kg/m	15-24	15-24	15-24
Bogie center distance	Mm	3200	3200
Applicable gauge	Mm	600	600	600
Person No. Of embarking	No. Of person	10	15	12
Drive type		Inserting sleeper	Inserting sleeper
	Kg	1702	1850
	Kg	1821	2000
dimension	mm	497010161468	5171821011201468	433610301520
